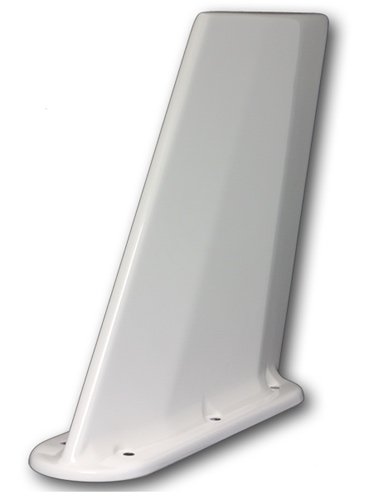

Picture of product 110-337
Part #: 110-337
Model: 110-337
Desc: ELT Antenna, 406 Blade
OEM: ACR/Artex
Sched-B: 8529104000
ECCN: 7A994
Part Number :


110-337
FEATURES
  • ELT Blade Antenna, Tri-band
  • 121.5, 243 & 406 MHz frequency
  • White
  • Two connectors - BNC/TNC
  • Meets TSOA C91a requirements
  • Meets Eurocae ED 62 flame test
SPECIFICATIONS
FREQUENCY: 121.5, 243 & 406 MHz VSWR: 2.0:1 - 121.5/243 MHz, 1.5:1 - 406 MHz
Polarization: Vertical Radiation pattern: Omni-directional
impedence rf: 50 OHMS (nominal) Power RF: 50 Watts
Weight: 1.3 lbs max height: 7.75"
Material: Molded blade finish: Polyurethane enamel
connector: BNC (female) for 121.5, 243, TNC (female) for 406 MHz Temperature: -55 Deg C to +85 Deg C
altitude: 50,000' gasket: B31914 (optional - order separately)
part number:antenna Description:
110-337 White ELT Blade Antenna, Tri-band
110-337-01 White ELT Blade Antenna, Tri-band, protective edge



50,000'
gasket:
B31914 (optional - order separately)
Serial # 2123625
Condition OH
Mods -
Tag Date 06/13/25
Shop Camtronics LLC
Warranty 6 Months
110-337
- ELT Antenna, 406 Blade
Price Condition Status
$1,750.00 OH OUTRIGHT 1 IN STOCK
$2,175.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

An Artex ELT with a part number ending in -999 simply indicates that the unit is not programmed and is intended to be programmed via dongle (DGL-1) or wired into the ELT NAV interface (455-6500). Mostly only fleet operators and airlines request this programming ability to avoid reprogramming an ELT during routine maintenance should the ELT be replaced.

Most Artex ELT systems are received by distributors programmed with the ELT serial number for use in the USA. Thus the P/N ends in -366. If the ELT is programmed for another country, then the appropriate labels are placed on the ELT. However, the original dataplate part number remains the same. Dealer/distributors who are authorized to program Artex ELTs are not permitted to change the part number of the ELT.

Therefore, if someone requires an Artex ELT to actually have the -999 part number then this must be requested before the distributor places the order with the factory. Otherwise, programmed ELTs can be programmed with a default hex address and ID to be equivalent to the -999 status. When this is done by an authorized programming facility, the dataplate remains the same but the separate label with country and three digit code becomes blank and the hex ID label indicates the default hex ID.
COSPAS is an acronym for the Russian words "Cosmicheskaya Sistema Poiska Avariynyh Sudov" . These Russian words translate to "Space System for the Search of Vessels in Distress".
SARSAT is an acronym for "Search And Rescue Satellite-Aided Tracking". The SARSAT system was developed as a joint effort by the USA, Canada, and France.
