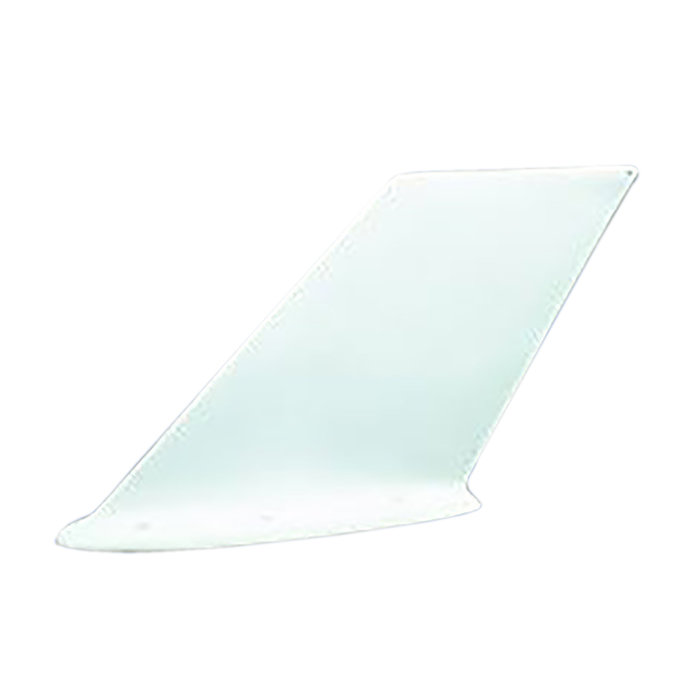

Picture of product VC10-126
Part #: VC10-126
Model: VC10-126
Desc: VHF Antenna
OEM: Dayton-Granger
Sched-B: 8529104000
ECCN: 7A994
Part Number :

logo



VC10-126

FEATURES

  • The VC10-126 is a vertically polarized VHF communications antenna which operates over the frequency range of 118 to 150 MHz
  • The antenna is constructed of a fiberglass radome encapsulating the radiating element and matching network
  • The internal components are foamed in place to avoid problems incurred in aircraft shock and vibration



SPECIFICATIONS
Frequency: 118-150 MHz VSWR: 2.5:1
Impendance: 50 Ohms Polarization: Vertical
Radiation Pattern:  Omnidirectional Connector: BNC
Weight: 2.3 lbs Finish:  White Polyurethane
Height:  12" (304 mm) Construction:  Fiberglass rod Aluminum base
Speed Rating:  600 Knots Approvals:  FAA TSO C37b, C38b
vibration: 5G SHOCK: 15g
temperature: -65˚C to +71˚C power: 40 Watts





Part Number: Description:
MD41-1817 Annunciation Control Unit for TB17



Serial # 2881
Condition NEW
Mods -
Tag Date 10/07/24
Shop Dayton-Granger Inc.
Warranty 1 Year
VC10-126
- VHF Comm Antenna
Price Condition Status
$2,225.00 NEW OUTRIGHT 1 IN STOCK
