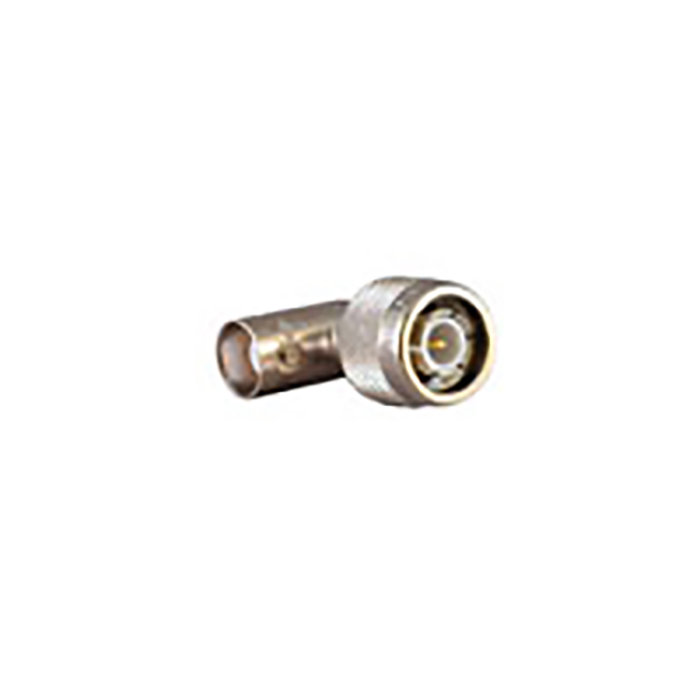

product image

Part #: DBFTMA-90

OEM:

Deklin

Desc:

BNC to TNC Connector Adapter

Part Number :

Home



DBFTMA-90





FEATURES

  • High quality precision nickel body construction with a gold plated center conductor
  • Dielectric withstanding voltage in excess of 1,500V RMS
  • Minimum insulation resistance of 5k ohm



SPECIFICATIONS

Voltage Rating: 500 VRMS Impedance: 50 OHMS
Frequency Range:  DC to 4GHz Dielectric Withstanding Voltage: 1,500 VRMS
Insulation Resistance: 5,000 MegOhms Min. Temperature Range: -65 to +165ºC
Body MATERIAL: 360 Brass per QQ-C 625 MATERIAL Contact: Berylium Copper per QQ-C-530
Insulator: Teflon per ASTM-D1457 Body FINISH: 0002 Min. Bright Nickel per QQ-N-290
Part Number:  Description:
DBFTMA-90 BNC to TNC Connector Adapter



DBFTMA-90
- BNC to TNC Connector Adapter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
