| Part #: | G7131-04 |
|---|---|
| Model: | G7131-04 |

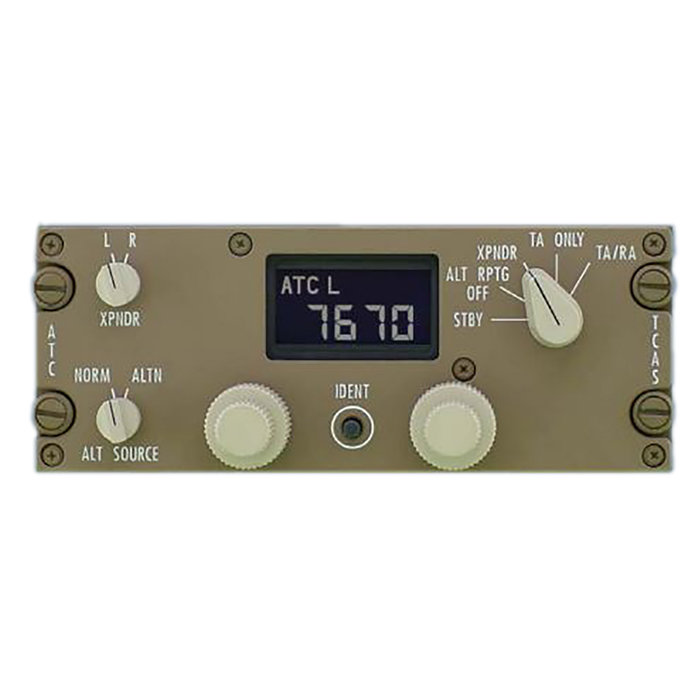

| Desc: | ATC/TCAS Control Panel |
| OEM: | Gables |
| NSN: | |
|---|---|
| ECCN: |
Select part number above to view pricing and availability.
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
- Dual Mode-S configuration
- Rotary knob entry for ATC code
- Altitude reporting OFF-ON
- Altitude source NORM-ALTN selection
- Transponder L-R selection
- TCAS TA only, TA/RA selection
- Separate controls of ABV/N/BLW and Flight Level (ABS-REL) selection for Captain and First Officer displays
- Altitude limit range: A = 2,700 ft, B = 9,900 ft
- Built-in-test (BIT) capability
- Non-volatile storage of ATC code
- Modular design provides flexibility for custom layouts
- Modular construction contributes to economical maintenance
- MTBF (Calculated): 14,000 operating hours
SPECIFICATIONS
| Dimensions: | 2.235 (height) x 5.735 (width) x 5.0 (depth) inches, excluding rear connectors | certification: | TSO-C112, TSO-C119b, B777 |
| WEIGHT: | 2.0 pounds (max) | color: | Front Panel – Boeing Brown BAC #8328 |
| atc code range: | 0000 to 7777 (Octal) | COMPLIANCE: |
RTCA/DO-160C (Environmental), RTCA/DO-178A (Software), RTCA/DO-181 (ATCRBS/Mode-S), RTCA/DO-185 (TCAS), ARINC 429, ARINC 718, ARINC 720, ARINC 735 |
| power: | 115 VAC @ 400 Hz, 5.0 Watts (max) | electrical requirements: | Panel Lighting – 5VAC variable, LDC Lighting 5VAC variable |
| CONNECTORS: | J1 Mating: M83723-75R16247, or equivalent 24 pin connector, J2 Mating: M83723-75R16248, or equivalent 24 pin connector | Knobs: | Boeing Beige BAC #8925 |
| Part Number: | description: |
|---|---|
| G7131-04 | ATC/TCAS Control Panel |
| Price | Condition | Status |
|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
