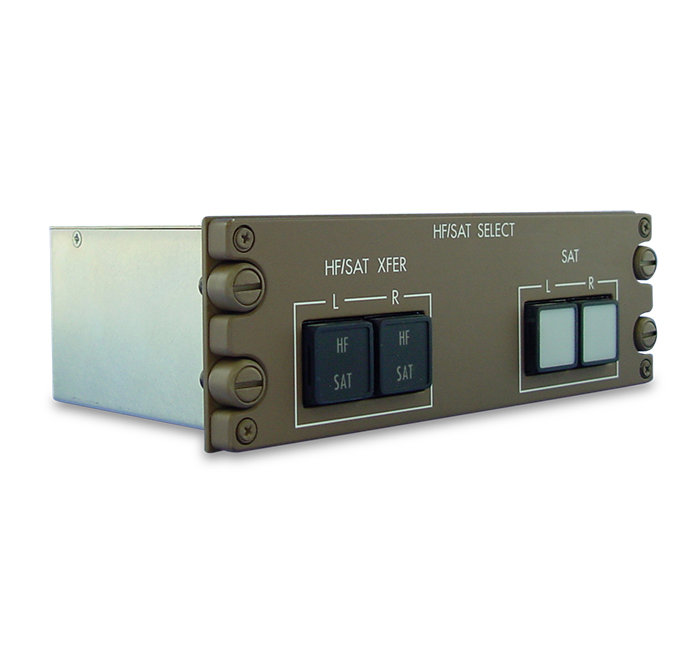

Picture of product G7164-03
Part #: G7164-03
Model: G7164-03
Desc: HF/SAT Annunciator Panel
OEM: Gables
Part Number :
Gables Engineering

G7164-03



FEATURES

  • Panel allows the existing audio control panel to remain by splitting the existing HF channels with the new Satcom channel
  • G7164 is available in a single or dual channel configuration and choice of color
  • Economical alternative to retain existing audio control panel for Satcom voice
  • Alternate configurations available for other aircraft installations and number of SAT channels (see table below)
  • Modular design provides flexibility for custom layouts
  • Modular construction contributes to economical maintenance



SPECIFICATIONS

Dimensions: 1.860 (height) x 5.735 (width) x 3.0 (depth) inches, excluding rear connector certification - aircraft: PMA on various aircraft models
WEIGHT: 1.0 lbs. color: Boeing Gray, Boeing Brown, Airbus Blue/Gray
Calculated MTBF: MTBF (calculated): 25,000 operating hours COMPLIANCE: RTCA/DO-160C (Environmental)
power: 26.5/12 VDC, 7.5 Watts (max), Indicator Lighting 26.5/12 VDC (-01, -03, -06, -07) 3/5VAC (-05), Panel Lighting 5VAC variable NOrmaL OPERATION: 2.5 Watts (Typical)
Part Number: description:
G7164-03 HF/SAT Annunciator Panel





G7164-03
- HF/SATCOM Control Panel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
