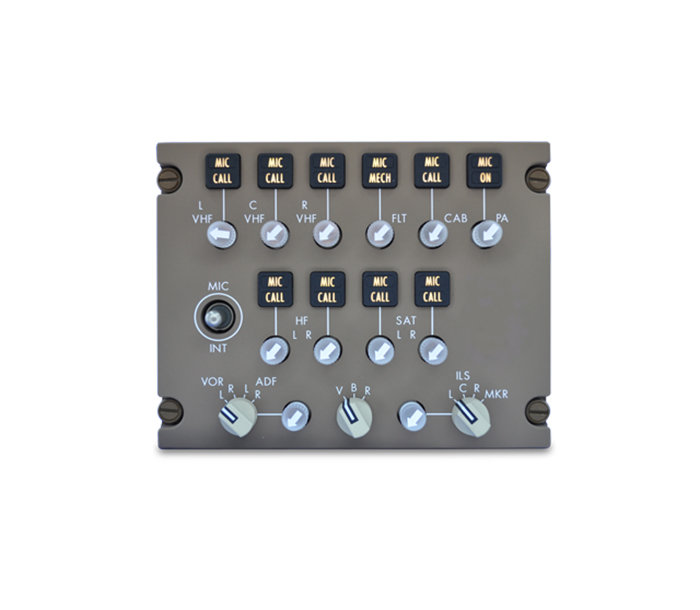

Picture of product G7257-02

Part #: G7257-02

OEM:

Gables

Desc:

Audio Control Panel

Part Number :
Gables Engineering

AG7257-02



FEATURES

  • GInterfaces directly to VHF and HF radios (no AMU)
  • Digital controller for functional flexibility
  • Controls two SATCOM channels
  • Flashing incoming SAT call annunciation
  • Steady “Call Connected” annunciation
  • Control output for external chime
  • Flashing “Call On-Hold” annunciation
  • Call can be connected/disconnected from any station
  • Automatic 5 second SAT call reconnect
  • Annunciates and resets SELCAL alerts
  • Ground Call activation via FLT MIC/MECH pushbutton
  • Liquid splashproof design
  • Reliable switch design (>1 million actuations)
  • LED lighting
  • Sun-light readable MIC selector indication
  • Voice/Both/Range Filter
  • Non-volatile storage of front panel settings
  • Modular design provides flexibility for custom layouts
    Modular construction allows economical maintenance



SPECIFICATIONS

Dimensions: 4.485 in/113.9 mm (height) x 5.735 in/145.7 mm (width) x 6.5 in/165.1 mm (depth), including rear connectors cOLORS : Front Panel – Boeing Brown BAC #8328 or Gray FED STD595b36118, Rotary Knobs – Boeing Beige BAC #8925 or Gray FED STD 595b36118, Volume Knobs – Clear plastic (Markings – White FED STD 595b37875), Front Panel Markings – White FED STD 595b37875 (Futura Medium Condensed font), Push Buttons – Non-reflective Black FED STD 595b37038
WEIGHT: 3.5 lbs/1.6 kg (max) Certification: TSO-C139, B757-200/300 via STC
Calculated MTBF: 16,000 operating hours COMPLIANCE: RTCA/DO-160E (Environmental), RTCA/DO-178B (Software), RTCA/DO-214 (Audio),ARINC 720, ARINC 736A, Boeing D6-52191-1
power: 28 VDC NOrmaL OPERATION: 10 Watts (Typical)
CONNECTORS:

J1 Mating: M83723/75R2041N, or equivalent 41 pin connector, J2 Mating: M83723/75R1831N, or equivalent 31 pin connector, J1 Mating: M83723/75R20418, or equivalent 41 pin connector

pANEL DIMMING: 0-5 VAC
Lamp test: 16 Watts (Max)
Part Number: description:
G7257-02 Audio Control Panel



G7257-02
- Audio Control Panel
