Part #: LT73
Model: LT73

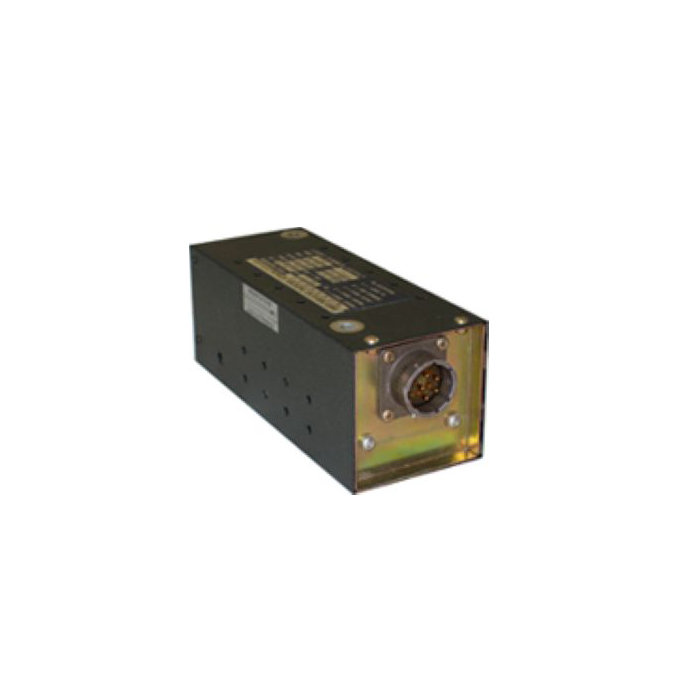

Desc: DC to DC Power Converter
OEM: KGS
Sched-B: 8504400018
ECCN: 3A225
Part Number :



LT-73
FEATURES
  • The LT-73 pulse width-modulated DC to DC converters that provide regulated power
  • LT-Series are used to control the light intensity of incandescent bulbs in aircraft instrument lighting when voltage control is required
  • Transform an unregulated 28 VDC to a regulated and adjustable DC output via a remote control voltage; 0 to 5 VDC typical or 0 to 28 VDC
  • State of the art design for regulation and positive logic for output overvoltage protection
  • Other voltage control range is available.
  • The Model LT-Series is serviceable, small and lightweight (33 watts per pound and 1.7 watts per cubic inch)
  • Maximum output voltage is adjustable with an internal trim pot
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202 and MIL-T-5422F class 1AP



SPECIFICATIONS

Dimensions: 2.3" H x 2. 3" W x 5.8" L. (5.7 cm H x 5.7 cm W x 14.6 cm L) Weight: 1.5 lbs. (683 grams).
Input Voltage: 28 VDC nom., 20 TO 40 VDC Input Current: 3.2 typical at 28 ADC/ @20 VDC 4.0
Output Voltage: 0 to 12 VDC Output Current: 5.8 ADC
MAx VA Rating: 70 Compliance: FAA TSO-C71
Regulation: 2% for line, 2% load and 2% temperature Output Ripple: 25 mVp-p
Altitude: 55,000 ft. Temperature: -55°C to +71°C (sufficient cooling required @ +71°C ambient)
Overload Protection: Input and output current pulse when overload exceeds approximately 125% of rating Overvoltage Protection: Output voltage is limited to approximately 125% of rating even though remote control rheostat opens or shorts, or internal failure occurs.
Mating Plug: MS3106A14S-5S-X Receptacle: MS3102A14S-5P-X
Efficiency: 78



Part Number: Description:
 LT-73 DC to DC Power Converter






LT73
- DC to DC Power Converter
Price Condition Status
$1,595.00 NEW OUTRIGHT REQUEST LEAD TIME
