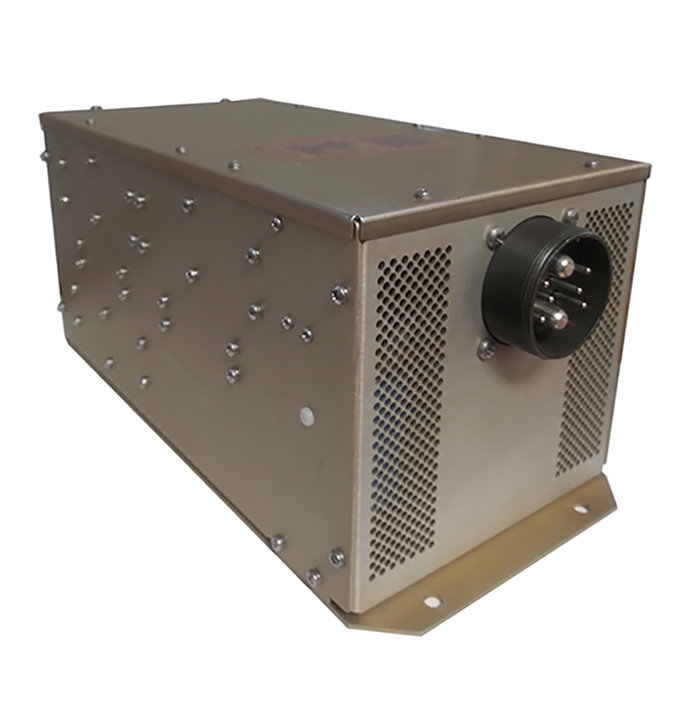

Part #: SEA150

NSN:

6130-01-565-9147

OEM:

KGS

Desc:

3 Phase Inverter

Part Number :



SEA150

FEATURES

  • TSOd lightweight, 400Hz 3 phase static inverter
  • Utilizes the latest state of the art, solid state circuitry to invert a 28 Vdc input to a 115/200 Vac, 400 Hz, 3 phase sine wave output
  • Features include a crystal-controlled oscillator for output frequency stability and a pulse-width-modulated square to sine wave power conversion scheme for efficient & reliable operation
  • Primarily designed to power airborne and ground instruments, compasses, gyros, radar and navigation equipment



SPECIFICATIONS
current: 1.5 Adc nominal at NL; 63 Adc at 1.5 KVA at 28 Vdc output voltage: 115 Vac Line to Neutral, 200 Vac Line to Line
power: 1500 VA (500 VA per Phase) frequency: 400 Hz +/- 0.4 Hz
phase & wave form: Three phase, Sinewave Harmonic distortion: 2.5% (nominal)
power factor: +0.8 to -0.8 efficiency: 87% (nominal)
response time: 300 uSec (no load to full load) regulation: 1% Line, 1% Load, 2.5% Temperature
overload capacity: 110% of rated power for 2 hrs, 150% of rated power for 5 minutes protection circuit: The inverter will shutdown under the following conditions:*Input voltage > 37.5 +/- 1 Vdc, *Input voltage < 18 Vdc +/- 1.5 Vdc, *Internal high ambient temperature, *Short circuit condition (after 2 to 15 sec)(manual reset)
remote on-off: Yes operating temperature: -55°C to +71°C
weight: 15.7 +/- 0.3 lbs altitude: 55,000 ft
environmental: DO-160C Env. Cat. F2ZBB[ LV] E1XXXXXBXAXXXZXXX cooling: Thermostatically controlled brushless fan (Fan ON above 50 ° C)
compliance: FAA TSO-C73



Part Number: Description:
sea150   3 Phase Inverter, 28 VDC to 115 VAC, 400Hz, 1500VA



SEA150
- 3 Phase Inverter, 28 VDC to 115 VAC, 400Hz, 1500VA

NSN: 6130-01-565-9147

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
