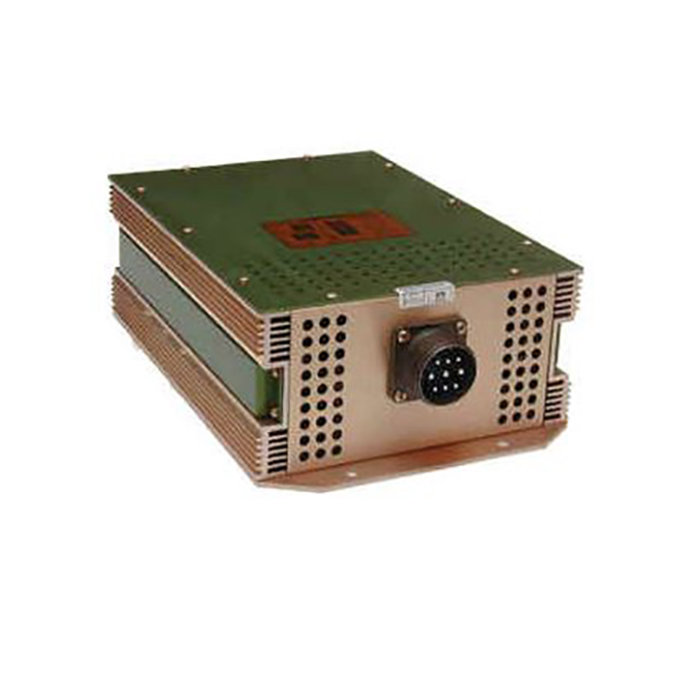

Picture of product SPC-30
Part #: SPC-30
Model: SPC-30
Desc: Static Inverter
OEM: KGS
NSN: 6130-01-215-1737
Sched-B: 8504400040
ECCN: 3A225
Cage Code: 16017
Part Number :







FEATURES

  • Static inverter utilizing solid state circuitry to convert 28 VDC to 115 VAC 400 Hz sine wave power
  • Design features include SINE to SINE AC power amplification resulting in minimum weight and low levels of EMI emissions
  • Capable of delivering an overload of 150% of current for a duration of not less than five minutes under all environmental conditions
  • Remote "on-off" provisions
  • Total continuous output power is 300 VA



SPECIFICATIONS

Input Voltage: 28.0 VDC ± 2 VDC, operates down to 20 VDC Input Current: 16 amps
Output Voltage: 26/115 VAC Output Power: 75/300 (1)
Power Factor: .8 to 1.0 Amplitude Distortion: Typically 3% (7% max.)
Wave Form: Sine Wave Phase: Single
Temperature: -65°F to +160°F (-55°C to 70°C) Altitude: 55,000 ft.
Efficiency: 70% typical Humidity: Tested to greater than 95% for ten days, temperature cycled between 75°F to 160°F
WEIGHT: 8.1 (3.7 kg.) CONNECTOR PLUG (2): MS3106B18-9SW





Part Number: Description:
spc-30 Static Inverter






















SPC-30
- Static Inverter

NSN: 6130-01-215-1737

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
