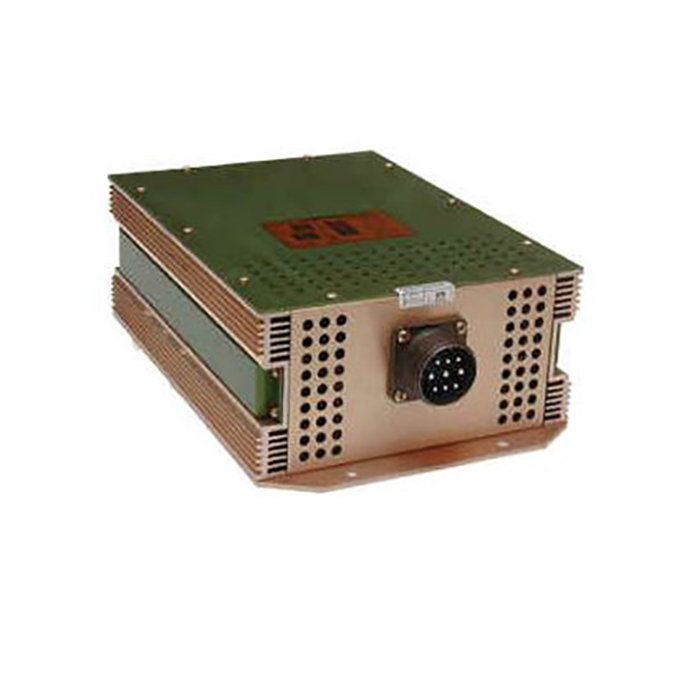

Picture of product SPC-30A
Part #: SPC-30A
Model: SPC-30A
Desc: Inverter
OEM: KGS
Sched-B: 8504409570
ECCN: 7A994
Part Number :







FEATURES

  • Static inverter utilizing solid state circuitry to convert 28 VDC to 115 VAC 400 Hz sine wave power
  • Design features include SINE to SINE AC power amplification resulting in minimum weight and low levels of EMI emissions
  • Capable of delivering an overload of 150% of current for a duration of not less than five minutes under all environmental conditions
  • Total continuous output power is 300 VA



SPECIFICATIONS

Input Voltage: 28.0 VDC ± 2 VDC, operates down to 20 VDC Input Current: 16 amps
Output Voltage: 26/115 VAC Output Power: 75/300 (1)
Power Factor: .8 to 1.0 Amplitude Distortion: Typically 3% (7% max.)
Wave Form: Sine Wave Phase: Single
Temperature: -65°F to +160°F (-55°C to 70°C) Altitude: 55,000 ft.
Efficiency: 70% typical Humidity: Tested to greater than 95% for ten days, temperature cycled between 75°F to 160°F
WEIGHT: 8.1 (3.7 kg.) CONNECTOR PLUG (2): MS3106B18-9S





Part Number: Description:
spc-30A Inverter






















SPC-30A
- Static Inverter
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
