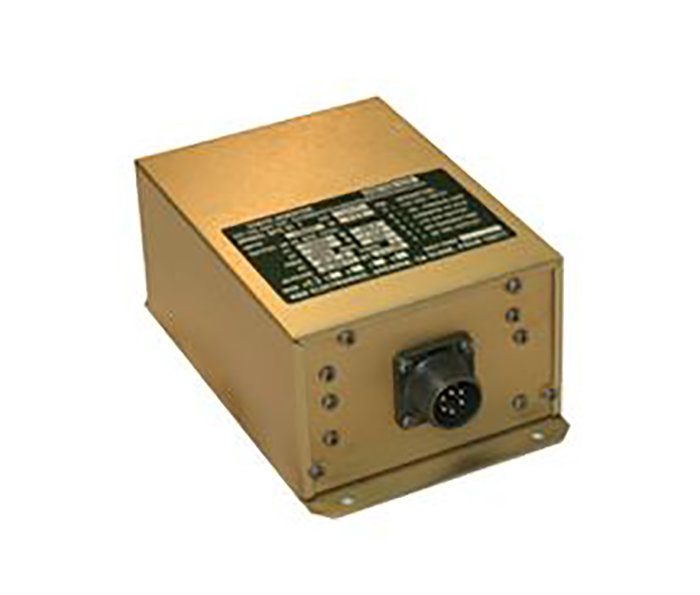

Picture of product SPC-5B
Part #: SPC-5B
Model: SPC-5B
Desc: Static Inverter
OEM: KGS
Sched-B: 8504400040
ECCN: 3A225
Part Number :





FEATURES

  • Static inverter that utilizes solid state circuitry to convert 28 VDC to 115 VAC, 400 Hz sine wave power
  • Design features include pulse-width modulated square to sine wave power conversion permitting light weight and reliable operation
  • Capable of delivering an overload of 150% of rated current for a duration not less than five minutes under all environmental conditions



SPECIFICATIONS

input voltage (vdc): 20 TO 36 VDC input current (adc) @ 28 vdc in: 2.7
out power (total) 115 vac/ 26 vac: 50VA, 50VA / 30VA OUTPUT CONTROL: NO
Fault Monitor: Yes Power Factor: .8 to -.95
Output Voltage: 115 VAC and / or 26 VAC Phase/Waveform: Single / Sine Wave
Weight: 3.1 lbs. Humidity: Tested to greater than 95% for 10 days, temperature was cycled between 75°F to 160°F
Altitude: 55,000 ft. Temperature: -65°F to +160°F (-55°C to +71°C)
Input Transient Protection: Withstands transients of 88 volts 1 mSec on the 28 VDC input line Input Overvoltage: Operate up to 37 VDC input while supplying full rated VA output power. Output voltage under this condition is 115 VAC +5%, 7%
Frequency: 400 Hz ± 1% Environmental: Designed to meet RTCA paper DO-160 Env. Cat. D2BR
Amplitude  Distortion: Less than 7% (3% Typ.) overload & short circuit protection: Withstands without damage or degradation load exceeding 150% of rated output to an output dead short.Inverter delivers rated output on removal of above conditions





Part Number: Description:
SPC-5B   Static Inverter







Serial # 327
Condition SV
Mods 02
Tag Date 11/05/25
Shop KGS Electronics
Warranty 6 Months
SPC-5B
- Static Inverter
Price Condition Status
$950.00 SV EXCHANGE 1 IN STOCK
$1,750.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
