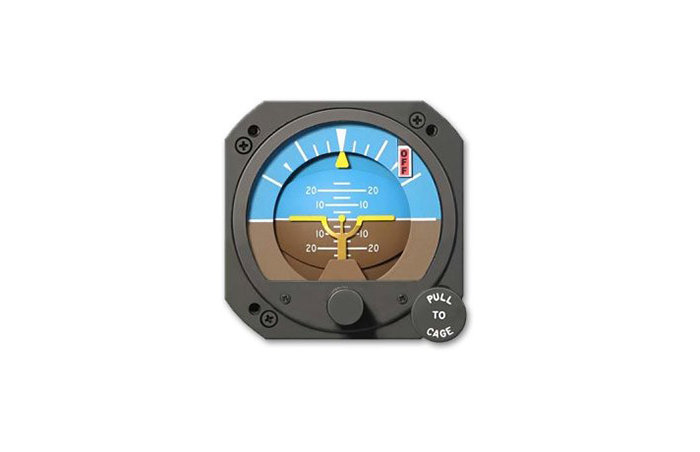

Picture of product RCA26EK-9

Part #: RCA26EK-9

OEM:

Kelly Mfg.

Desc:

Electric Attitude Indicator (12-30 VDC)

Part Number :
Kelly Manufacturing Logo
FEATURES
  • Gyroscopic Attitude Indicator
  • Designed as a direct replacement for the RCA26AK (14 volt) and the RCA26BK (28 volt)
  • Can be installed on virtually any aircraft regardless of its power system
  • Multi-Volt Operation (11 to 30 VDC)
  • Multi-Volt integrated lighting
  • Fits standard 3" cutout
  • Bold color display
  • Power failure flag
  • Roll indication of 360°, Pitch ±30° Pitch trim range ±7°
  • Optional fixed or moveable pointer (see table below)
  • Optional lighted or non-lighted version (see table below)
  • Optional orange or yellow airplane and pointer (see table below)
  • Optional Slip Indicator (P/N 444-0011-01) available which satisfies FAA AC 91-75
  • Mating Connector (MS3116E8-4S) & screws included (when sold new)
  • Meets or exceeds requirements of TSO-C4c and AS396B
  • NOTE: Panel tilt angle is set at the factory and must be specified at time of order



SPECIFICATIONS
Operating Voltage: 11 to 30 VDC  Starting Current: 2.40 AMPs MAX (14VDC system) 1.40 AMPs MAX (28 VDC system)
Running Current: 1.24 AMPs MAX (14 VDC system) 0.62 AMPs MAX (28 VDC system)  Circuit Breaker Size: 3 AMP (14 VDC system) 2 AMP (28 VDC system)
Temperature: -30° to +50° C  Dimensions: 8.14"L x 3.38"W x 3.38"H
Power Consumption: 17VA max. lighting 3VA max Power Flag Actuation Range: Flag up @ 11 VDC ± 0.5 VDC Flag down @ 10 VDC ±0.5 VDC
Weight:  2.3 lbs  Connector Pin-out: A: Ground Motor B: Spare C: +12-30 VDC D: Spare
Part Number Attitude Indicator Description:
RCA26EK-6 Fixed pointer, unlighted, orange airplane and pointer
RCA26EK-7 Fixed pointer, lighted, orange airplane and pointer
RCA26EK-8 Movable pointer, unlighted, orange airplane and pointer
RCA26EK-9 Movable pointer, lighted, orange airplane and pointer
RCA26EK-11 Fixed pointer, unlighted, yellow airplane and pointer
RCA26EK-12 Fixed pointer, lighted, yellow airplane and pointer
RCA26EK-13 Movable pointer, unlighted, yellow airplane and pointer
RCA26EK-14 Movable pointer, lighted, yellow airplane and pointer



RCA26EK-9
