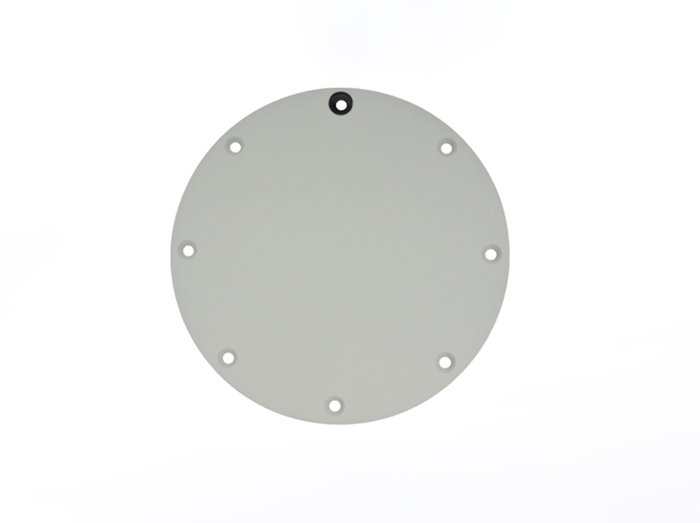

Picture of product DM PN3-3/A

Part #: DM PN3-3/A

NSN:

5985-01-480-6362

OEM:

L3Harris

Desc:

Radar Altimeter Antenna

Part Number :
L3Harris Logo

DM PN3-3/A



FEATURES
  • Dielectric foam-filled, lightweight, flush, broadbeamed horn type antenna
  • By controlling side lobes and reducing surface currents, the antennas feature very high isolation which exceeds 65 dB at a center-to-center separation of only 20° when used in pairs.
  • Suggested alternative to the KA-54 (part of the KRA-405 system)



SPECIFICATIONS
Frequency: 4200 - 4400 MHz frequency band weight: 20 oz.

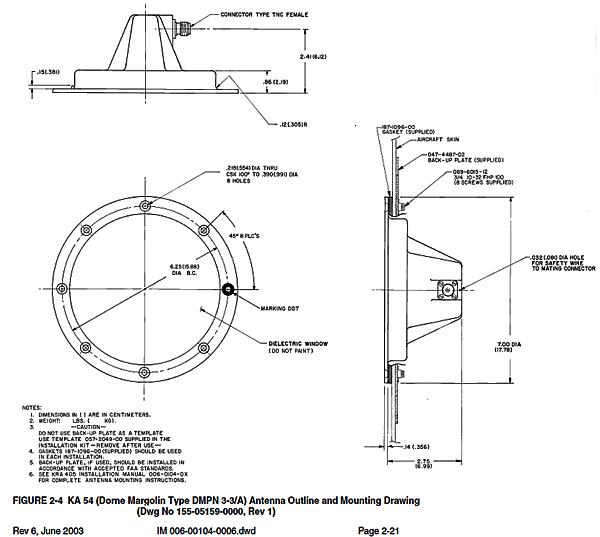

Height: 2.75" diameter: 7"
Part Number Antenna Description:
DM PN3-3/A see details above



DM PN3-3/A
- Radar Altimeter Antenna

NSN: 5985-01-480-6362

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
