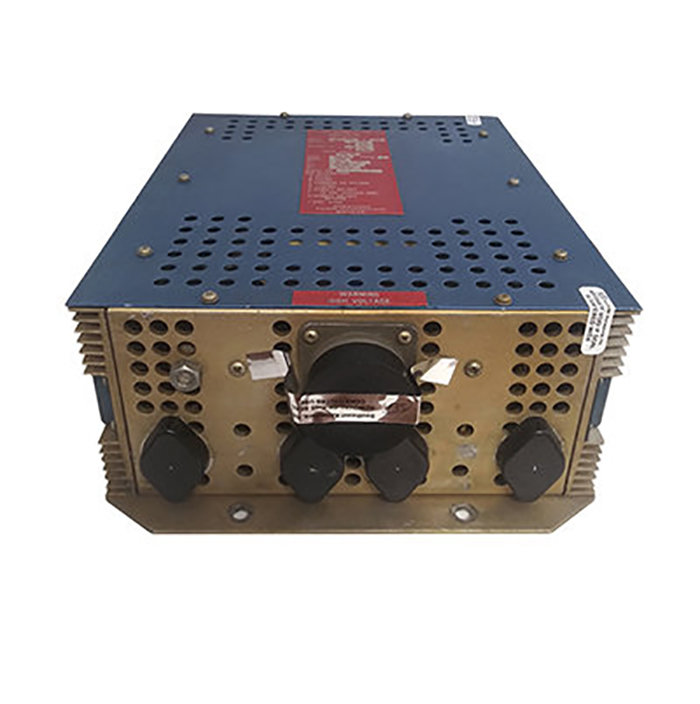

product image

Part #: PC-17A





Part Number :

Applications - Battery wo-price

  • Transistorized airborne static power inverter
  • Operates from 28.0 VDC aircraft power source and delivers 115 VAC or 26 VAC at 400Hz
  • Total continuous power drawn from the two outputs should not exceed 750 VA



Dimensions: (LxWxH) 12 in x 8 1/2 in x 4 1/16 in  Weight: 15 lbs
Output Voltage:  115 VAC rms +5%, -7% 22 to 30 VDC, Greater than 100 VAC down to input of 20 VAC Input Voltage: Nominal 28 Vdc, Range 22 to 30 VDC operate down to 20 VDC
Output WAVEFORM: Single Wave, Single Phase HUMIDITY: Greater than 95% for ten days, Temperature cycled between 75°F to 160°F
Temperature Range: -65°F to 160° F Altitude: 45,000 ft (15,000 m)
POWER FACTOR: 8 to -.9 OUTPUT FREQ: 400 Hz ±1%
INPUT CURRENT: 39 amperes full load, 1.5 amperes no load typical
Part Number: Description:
PC-17A Static Inverter



Serial # 9666A
Condition SV
Mods A
Tag Date 04/13/22
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 5289A
Condition SVC
Mods A
Tag Date -
Shop Southeast Aerospace Inc.
Warranty 6 Months
- Static Inverter

NSN: 6130-01-020-3951

Price Condition Status

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact

In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
