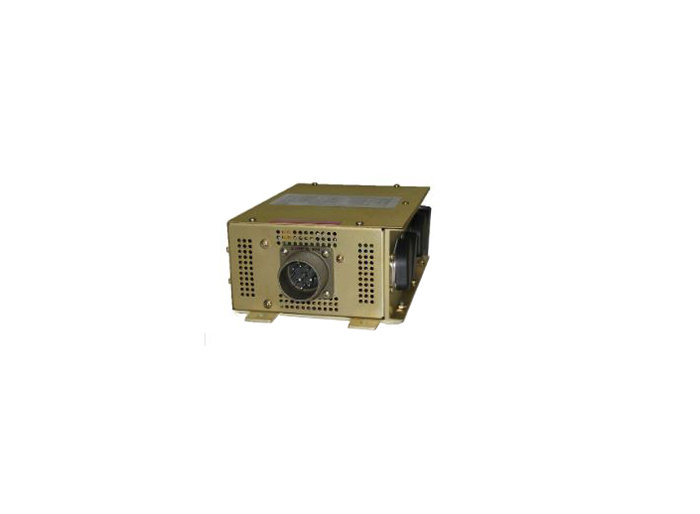

Picture of product PC-251-1C

Part #: PC-251-1C

NSN:

6130-01-178-7678

OEM:

Marathon

Desc:

Static Inverter

Part Number :


PC-251-1C

FEATURES

  • Converts DC electrical power ranging from 20-37VDC into monophase, sinewave, regulated AC electrical power
  • 250 VA power at 115 VAC output, 150 VA power at 26 VAC output
  • Suited for IFR equipped turbine-powered fixed-wing and rotor wing aircraft where Flight Directors/Autopilots, RMIs, ADFs, gyros and weather radar require reliable, lightweight 400 Hz power source
  • FAA TSO Approved
  • Includes remote on/off which PC-251 does not include



SPECIFICATIONS

Input Power: 28VDC at 11.9 amps (nominal); 24-32VDC (nominal range); 18-37VDC (total range) Output Power: 250 VA at 115 VRMS with a DC input voltage of 20-35 volts and/or 150VA at 26VRMS with a DC input voltage of 20-35 volts
Output Voltage: 115V RMS +-3% at a combination of 24-32V DC input and 0-125% load Dimensions: 7.0"L x 5.0"W x 2.75"H
Weight: 5.0 lbs. Efficiency: 76% nominal





PC-251-1C
- Static Inverter

NSN: 6130-01-178-7678

Price Condition Status
RFQ RFQ RFQ

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
