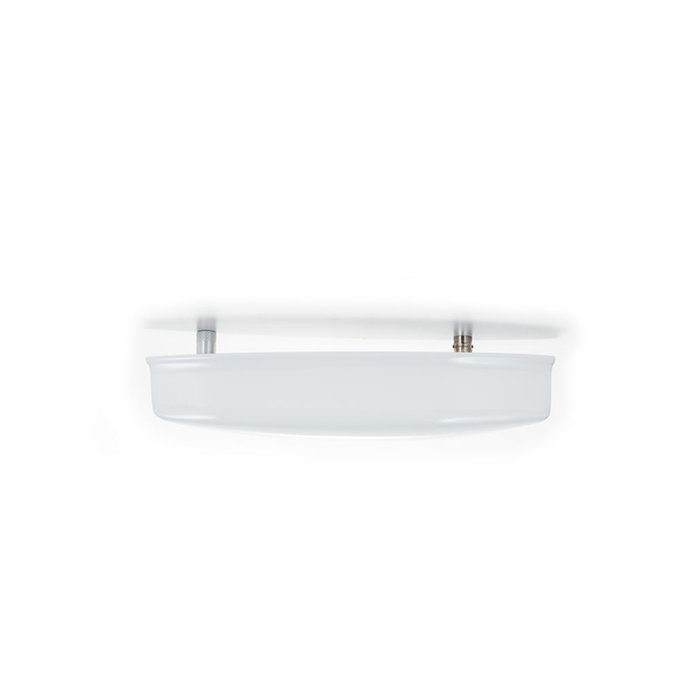

Picture of product AT-640A/ARN

Part #: AT-640A/ARN

NSN:

5985-00-607-6137

OEM:

RA Miller

Desc:

Marker Beacon Antenna

Part Number :



AT-640A/ARN



FEATURES

  • AT-640A/ARN Antenna is a receive-only VHF Marker Beacon antenna used on both fixed-wing and rotary-wing aircraft
  • Military Specification MIL-A-5999 for electrical and environmental performance
  • Finished with a white Skydrol resistant polyurethane paint in accordance with Military Specification MIL-PRF-85285
  • Operating temperature of -40°F to 160°F and experiences a drag force of 0.22 lb at airspeeds of 400 mph. Precipitation static is minimized through the use of a foam-filled fiberglass construction
  • The foam also reduces the effects of vibration, shock, and temperature extremes



SPECIFICATIONS

Application: Marker Beacon Frequency: 75 MHz
Impedance: 50 ohms nominal VSWR: 1.5:1 Max
GAIN: -10.5 dBd Minimum Pattern: Lobally Downward
RF Power Capacity: Receive Only Connector: "C" Female
Color: Gloss White
Part Number: Description:
AT-640A/ARN Marker Beacon Antenna







AT-640A/ARN
- Marker Beacon Antenna

NSN: 5985-00-607-6137

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
