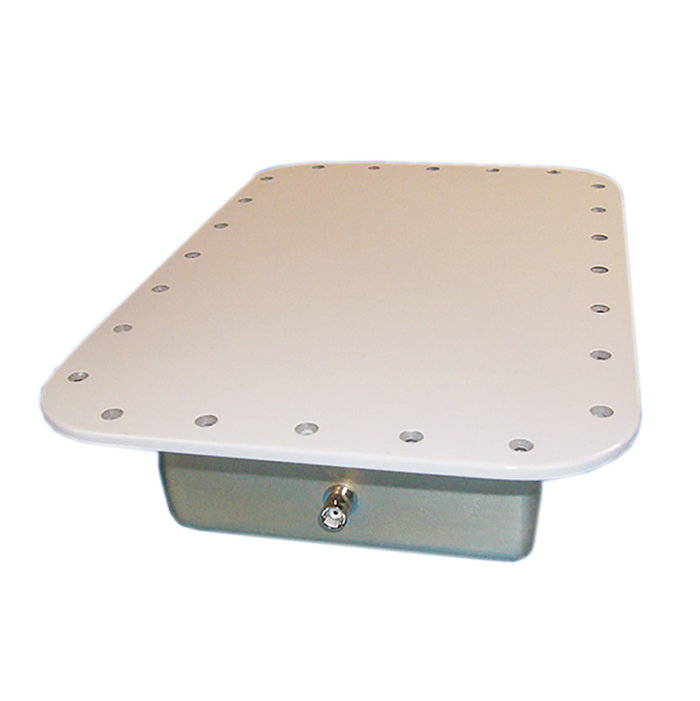

Picture of product S35-2000-6

Part #: S35-2000-6

OEM:

Sensor Systems

Desc:

Marker Beacon Antenna

Part Number :


S35-2000-6



FEATURES

  • Highly reliable, flush-mounted Marker Beacon
  • Constructed from a rugged one-piece drawn aluminum can
  • Foam-filled with epoxy glass radome and hermetically-sealed
  • DC-grounded radiating element enables the unit to withstand lightning strikes
  • Electrical characteristics are similar to a short horizontal dipole
  • VSWR and radiation patterns per MIL-A-25367A
  • TNC Female connector
  • Interchangeable with AT-536/ARN-type antennas
  • Federal & Military Specs: TSO-C35c, BAC-D-16046, MIL-A-25367A, MIL-E-5400H



SPECIFICATIONS

Frequency: 75 MHz VSWR:  ≤ 1.5:1 @ 75, ≤5.0:1 @ 75±0.15 MHz
Gain: 0±2 dBi (Relative Isotropic) pattern: Single Downward lobe
polarization: Linear (Major Axis) LENGTH:  11.75 Inches
width: 7.75 Inches Weight: 1.9 oz
finish: Skydrol-Resitant Polyurethane Enamel Material:  Aluminum Alloy/Fiberglass Radome
connector: TNC Female vibration: ±10 G's
Altitude: 70,000 ft. Temperature: -54° C(-65°F) to +74°C(+165°F)
sideload: 12 PSI
Part Number: Description:
S35-2000-6 Marker Beacon Antenna
