Part #: S65-247-38
Model: S65-247-38
Desc: VOR/LOC/GS Antenna System
OEM: Sensor Systems
NSN: 5985-01-687-8607
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 13691
Part Number :


S65-247-38





FEATURES

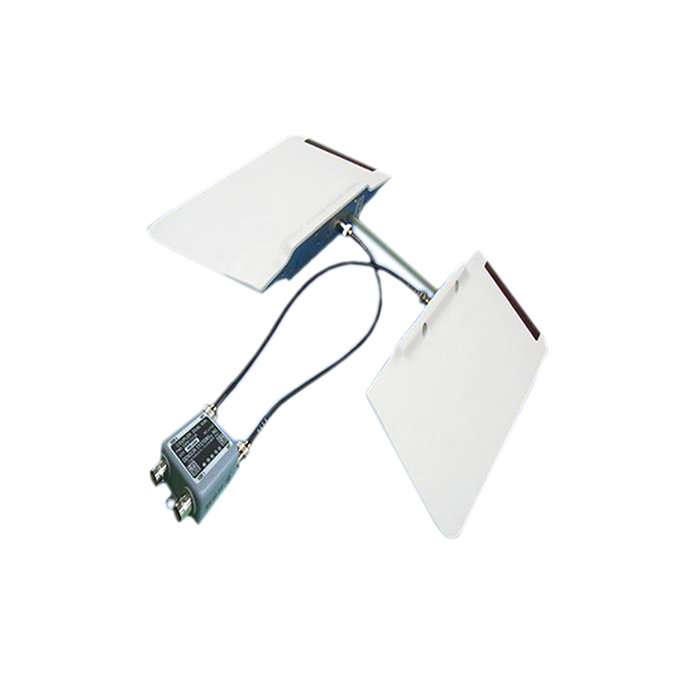

  • VOR/LOC Antenna System consists of two blade antennas with stainless steel leading edges, 24 inch cables, alignment rod and phasing coupler
  • S65-247-38 is a balanced loop design with omni-directional radiation pattern assuring maximum signal strength
  • The coupler included is for the dual VOR installation
  • Designed for installation on general aviation aircraft as well as business jets and helicopters
  • Phasing Coupler/Power Divider SSPD-113-38 is tuned to the VOR antenna blades for dual VOR installations, eliminating the need for additional power dividers
  • FEDERAL & MILITARY SPECS: FAA TSO 36e, C-40c, DO-160D/G, MIL-STD0810D/E, SAAB JS032-13-ER-00017



SPECIFICATIONS

Frequency: 108-118 MHz VSWR:  ≤ 5.0:1
Pattern: Omnidirectional Polarization: Horizontal
Impedance: 50 ohms Power: 5 Watts
Lightning Protection:  DC Grounded Weight (SYSTEM): 2.7 oz
HEIGHT: 5.45 Inches Material: Aluminum Alloy/Fiberglass/ Stainless Steel
Finish: Skydrol Resistant Polyurethane Enamel Connector: BNC Female
dRAG: 1.2 lbs. @ M.85 @ 35,000 ft. Temperature: -55°C (-67°F) to 70°C (+158°F )
Vibration: ±10G's Altitude: 70,000 ft.
WIDTH: 1.89 Inches Length: 13.00 Inches
gain: 0 ± 2 dBi



Part Number: Description:
S65-247-38 VOR/LOC/GS Antenna System
