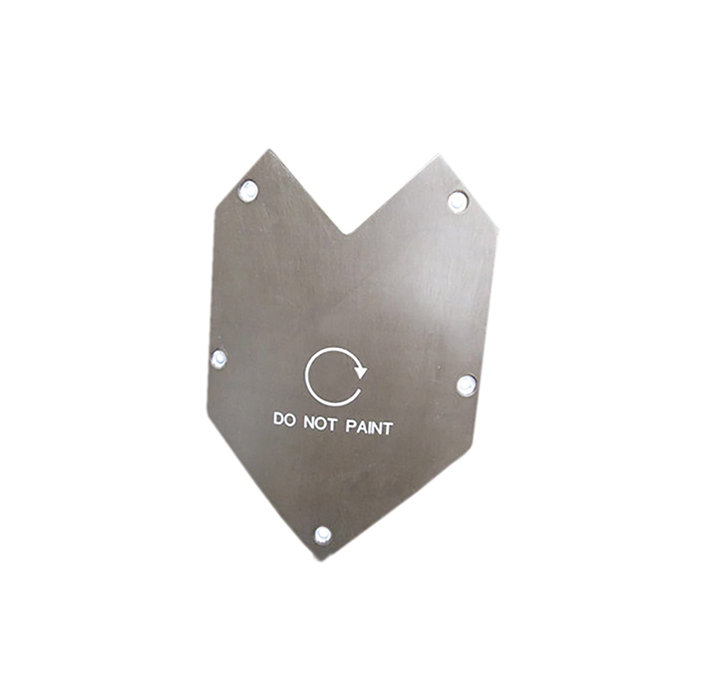

Picture of product S65-5366-270
Part #: S65-5366-270
Model: S65-5366-270
Desc: L-Band Antenna
OEM: Sensor Systems
ECCN: S65-5366-270
Part Number :


S65-5366-270



FEATURES

  • L-Band Antenna is designed to obtain the lowest possible radar cross section
  • Omni-directional coverage
  • Antenna housing is machined from aluminum
  • Normally furnished with a right angle SMA connector
  • FEDERAL & MILITARY SPECS: MIL-DTL-5541, MIL-E-5400, MIL-STD-810



SPECIFICATIONS
Frequency: 1430-1530 MHz VSWR: ≤2.0:1
POWER HANDLING: 2 Watts  Polarization: RHCP
Impedance: 50 ohms  axial ratio: ≤ 4 dB @ Zenith
LENGTH: 6.63 in. Weight: 8 oz
Height: Conformal  Material: 6061-T6 Aluminum Alloy / Teflon Glass
Finish: Iridite per MIL-DTL-5541 Connector: SMA Female
Temperature: -62°C (-80°F to +203°F) +95°C Vibration: 10 G's
Altitude:  -15000 to +70,000 ft  width: 4.50 in.
Part Number: Description:
S65-5366-270 L-Band Antenna




X
S65-5366-270
- L-Band Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
