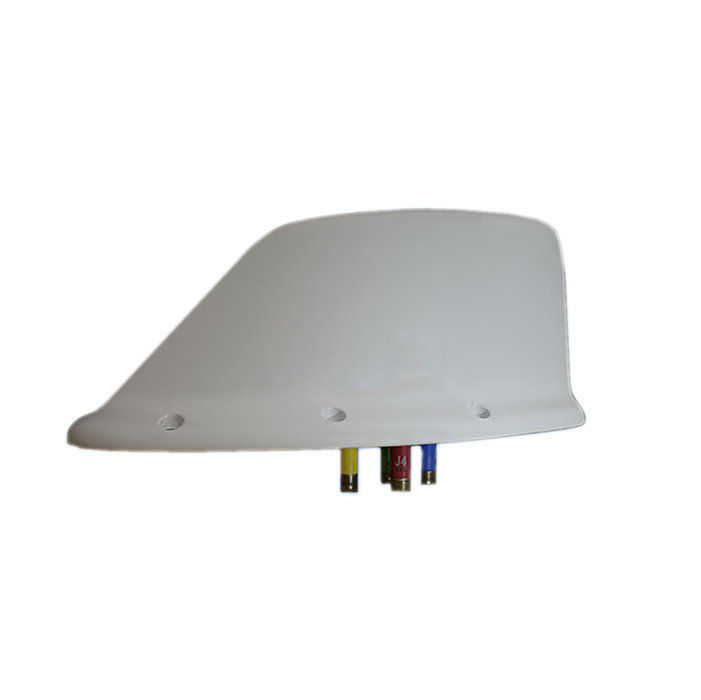

Picture of product S65-5366-703
Part #: S65-5366-703
Model: S65-5366-703
Desc: WiFi/LTE MIMO Antenna
OEM: Sensor Systems
Sched-B: 8529104000
ECCN: 7A994
Part Number :


S65-5366-703



FEATURES

  • S65-5366-703: A multi-band MIMO, short blade antenna that features a total of five (5) port connectors
  • Three (3) of the connectors cover the WiFi frequencies and the other two (2) connectors cover the LTE frequencies
  • Vertically polarized radiating elements are strategically located to provide optimum performance of over-the-air WiFi and LTE signals; while minimizing coupling effects
  • Low in profile and hermetically sealed. The composite radome provides protection against rain, ice and lightning strikes
  • The  (6) hole mounting configuration design is ideal for commercial aircraft installations
  • FEDERAL & MILITARY SPECS: MIL-STD-810D, MIL-HDBK-5400, MIL-E-5272C, MIL-A-7772B, RTCA DO-160D/GC






SPECIFICATIONS


Frequency: 2400-2500 MHz (WiFi: J1, J2, J5) 4900-5900 MHz (WiFi: J1, J2, J5) 700-2700 MHz (LTE: J3, J4) VSWR:  ≤ 3.0:1 (WiFi: J1, J2, J5) ≤ 3.0:1 (LTE: J3, J4)
Pattern: Omnidirectional Polarization: Vertical
Impedance: 50 Ohms Power: 50 watts
Lightning Protection:  DC Grounded Weight: 1.5 lbs
MATERIAL: 6061-T6 Aluminum Alloy/Thermoset Plastic altitude: 55,000 ft.
Finish: Skydrol Resistant Polyurethane Enamel temperature: -55°C (-67º F) to +85º C (185°F )
connector: TNC Female (5)





Part Number: Description:
s65-5366-703 WiFi/LTE MIMO Antenna





S65-5366-703
- WiFi/LTE MIMO Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

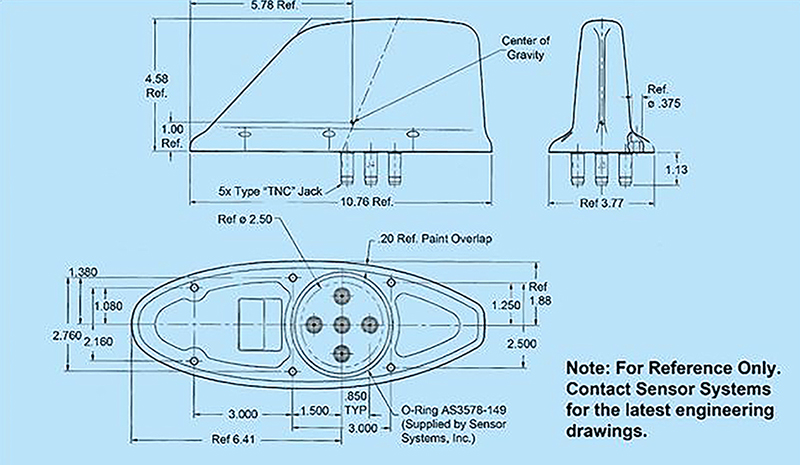

PLEASE NOTE - Publications are for Reference Only
