Part #: S65-5366-895L
Model: S65-5366-895L
Desc: L-Band Antenna
OEM: Sensor Systems
Sched-B: 8529104000
ECCN: 7A994
Part Number :

S65-5366-895L



FEATURES

  • Vertically polarized, omnidirectional LBand antenna operating from 960 to 1220 MHz, compliant with UAT (978 MHz) and ADS-B (1090 MHz)TSO-166b system specifi cations
  • Also supports ATC Mode-S and DME applications
  • VSWR is less than 1.5:1throughout entire frequency band
  • Transmit mode displays a gain of better than minus 3 dB over 90% of the coverage volume from O to 360 degrees in azimuth and 5 to 30 degrees above the ground plane when compared to the standard 1/4-wave monopole
  • Receive mode has a gain of better than one dB over 90% of the coverage volume from 0 to 360 degrees in azimuth and -15 to +20 degrees in elevation when compared to a 1/4-wave monopole
  • Rugged, all metal aluminum casting with a 4-hole bolt pattern
  • Unit is DC grounded and hermetically sealed
  • TNC connector, others available on request
  • For commercial, military and general aviation aircraft



SPECIFICATIONS

Frequency: 1090 MHz ± MHz (ADS-B), 1030-1090 MHz (Mode S), 978 MHz (UAT), 967-1213 MHz (DME), 960-1220 MHz (L-Band, XPNDR) VSWR:  ≤1.5:1
Pattern: Omni/AZ ≤ 1 dB Cos/EL > 90% coverage volume Polarization: Vertical
Impedance: 50 ohms Power: 2000 Watts Peak 100 Watts Continuous
Lightning Protection:  DC Grounded Weight: 5.0 oz
Height: 3.28" Material: A356-T6 Aluminum Alloy Casting
Finish: Skydrol Resistant Polyurethane Enamel Connector: TNC Female
Vibration: 10G's Altitude: 55,000 ft.
temperature: -55 °C (-67 °F) to +85 °C (+185 °F)

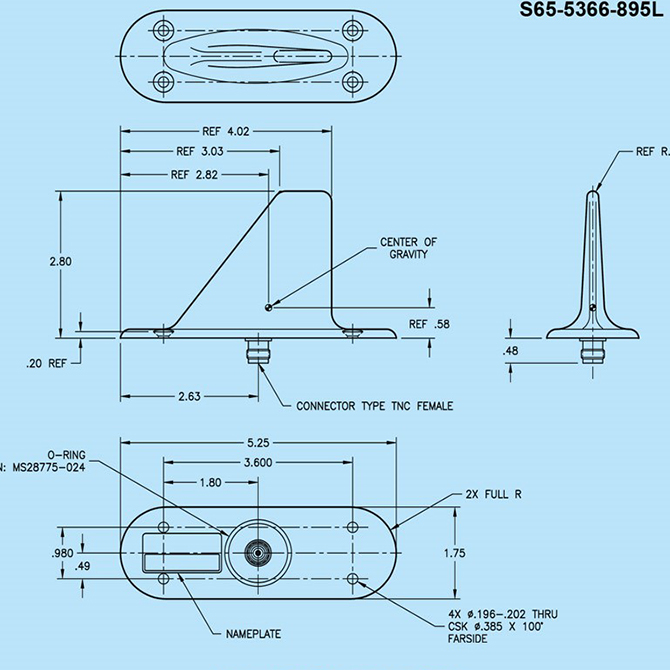

S65-5366-895L Diagram
