Part #: S65-8280-47
Model: S65-8280-47

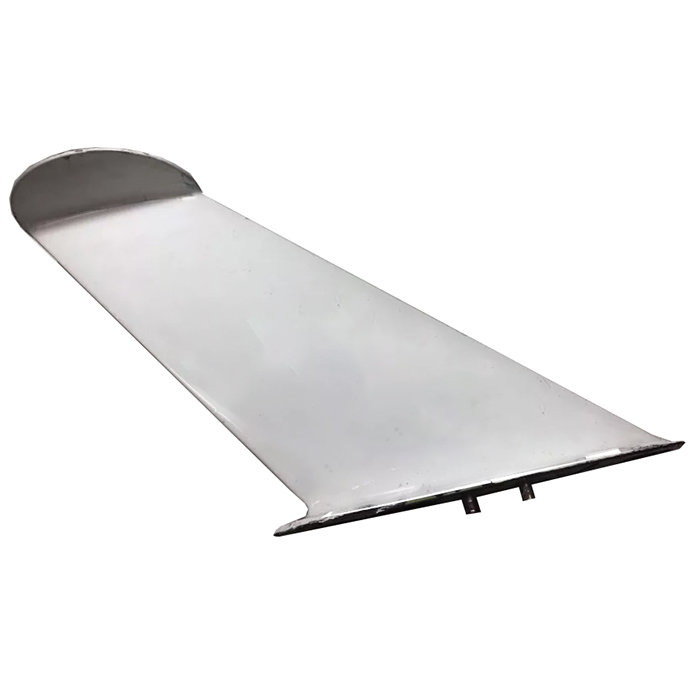

Desc: VHF/GPS Antenna
OEM: Sensor Systems
ECCN: 7A994
Part Number :






FEATURES

  • Dual function antenna provides completely TSO'd GPS and VHF communication within the VHF blade footprint
  • Designed to operate with the Magellan CNS-12 digital radio system which functions as both a GPS navigation system and ACARS transceiver
  • May be installed on a commuter aircraft and helicopters
  • No major structual rework required when replacing the VHF comm blade
  • Dual Frequencies
  • FEDERAL & MILITARY SPECS: FAA-TSO C37d, C38d and C129, DO-160, MIL-E-5400, MIL-A-6271, MIL-A-7772 (ASG), MIL-A-9094



SPECIFICATIONS
Frequency: VHF 118-152 MHz / GPS 1575.42 MHz VSWR: VHF 2.3:1 / GPS 2.0:1
Pattern: Omni/Az Polarization: VHF Vertical / GPS RHCP
Impedance: 50 ohms Power: 25 watts
Lightning Protection: DC grounded Weight: 3.6 lbs
Height: 11.00 in Material: A356-T61 Aluminum/thermoset plastic
Finish: Skydrol resistant enamel Connector: VHF BNC / GPS  TNC
Drag: 1.5 lbs Mach .85 @ 35,000 ft Side Load: 12 psi
Vibration: 14 G's Temperature:  -60°F to +185°F
Altitude:  60,000 ft VIBRATION: 14 G's
Part Number: Description:
S65-8280-47 VHF/GPS Antenna



S65-8280-47
- VHF/GPS Antenna
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
