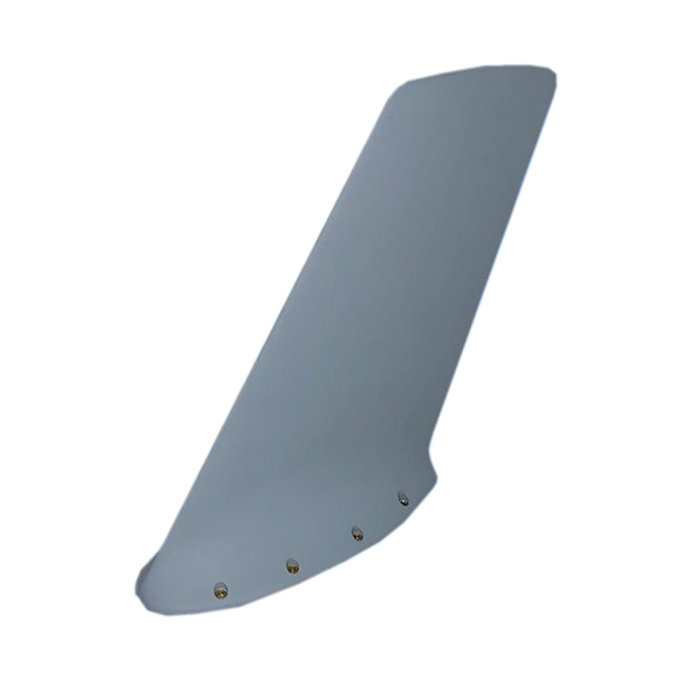

Picture of product S65-8282-296
Part #: S65-8282-296
Model: S65-8282-296
Desc: VHF/AM/FM/UHF Antenna
OEM: Sensor Systems
Sched-B: 8529104000
ECCN: 7A994
Part Number :




S65-8282-296

FEATURES

  • High speed, low drag, multifunction antenna
  • Broadband operational frequency enables use with VHF/UHF systems
  • Replacement for the legacy S65-8282-78, S65-8282-781 and S65-8282-98
  • Phase matching for DF Systems, ±3° max at 20-150 MHz and ±4° max at 150-512 MHz
  • Federal & Military Specs: RTCA DO-160G and MIL-HDBK-5400



SPECIFICATIONS

Frequency:  20-512 MHz VSWR: ≤ 3.5:1 (20-30 MHz) , ≤ 2.6:1 (30-100 MHz), ≤ 2.3:1 (100-512 MHz)
Phase tracking: (Swept) ± 3°Max (20-150 MHz),  ± 4°Max (150-512 MHz) Polarization:  Vertical
Impedance: 50 Ohms Power: 40 Watts (Iridium)
Finish: Skydrol Resistant Enamel Weight: 3.0 lbs
Temperature: -55°C (-67°F) to +85°C (+185°) Material: 6061-T6 Aluminum Alloy/ Thermoset Plastic
Altitude: 70,000 ft Connector: TNC Female
HEIGHT: 14.20 in. length: 12.55 in
width: 4.50 in.





Part Number: Description:
s65-8282-296 VHF/AM/FM/UHF Antenna






S65-8282-296
- VHF/AM/FM/UHF Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
