| Part #: | |
|---|---|
| Model: | CTL-93T |
| Desc: | TCAS Control |
| OEM: | Collins Aerospace |
| NSN: | |
|---|---|
| Sched-B: | 8537109070 |
| ECCN: |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
* Price & Availability valid as of 06/14/26 4:41:06 EDT *
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
* Price & Availability valid as of 06/14/26 4:41:06 EDT *
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
* Price & Availability valid as of 06/14/26 4:41:06 EDT *
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
* Price & Availability valid as of 06/14/26 4:41:06 EDT *
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
* Price & Availability valid as of 06/14/26 4:41:06 EDT *

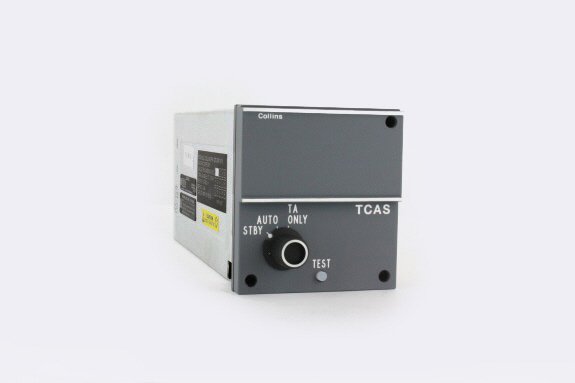

CTL-93T
FEATURES
- TCAS control used in conjunction with transponder control to provide ARINC 429 control of TDR-94D transponder and TCAS II System
- Accepts mode A and mode C code from CTL-92, parallel code from CTL-90 or ARINC 429 code from compatible ARINC 429 controls
- Adds TCAS control data to mode A and mode C code and outputs data via ARINC 429 output words for appropriate transponder
- CTL-93T controls are direct fit and form replacement for existing original CTL-92T Controls
- CTL-93T controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance
- CTL-93T controls include lighting bus that can be strapped for either 5 or 28 volt applications
- Models available with black or gray bezel (see table below)
- Models available with 5 or 28 volt lighting (see table below)
- Models available with variations of OFF-STBY-AUTO-TA ONLY switch selections (see table below)
- Models available with variations of display control pushbuttons (see table below)
- Models available with additional range selections for 40 and 3 nmi (see table below)
SPECIFICATIONS
| Weight: | 1.3 lbs. | Dimensions: | 2.395"W x 2.645"H x 6.83"L |
| TSO: | C112, C119 | EUROCAE: | ED-14B (Env), ED-12A (software) |
| Input Power: | 28VDC (16 to 32) at 7W max | Lighting: | 5V ac/dc blue-white lighting at 350Ma 28V dc blue-white lighting at 100Ma |
| Part Number | TCAS Control Description: |
|---|---|
| 822-2182-101 | 5/28V lighting, gray panel, no display control pushbuttons, STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-101 |
| 822-2182-103 | 5/28V lighting, black panel, no display control pushbuttons, STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-103/104 |
| 822-2182-105 | 5/28V lighting, gray panel, M,A/B,R display control pushbuttons, STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-105 |
| 822-2182-107 | 5/28V lighting, black panel, M,A/B,R display control pushbuttons, STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-107 |
| 822-2182-109 | 5/28V lighting, gray panel, no display control pushbuttons, OFF-STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-109/110 |
| 822-2182-111 | 5/28V lighting, black panel, no display control pushbuttons, OFF-STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-111/112 |
| 822-2182-113 | 5/28V lighting, gray panel, M,A/B,R display control pushbuttons, OFF-STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-113 |
| 822-2182-115 | 5/28V lighting, black panel, M,A/B,R display control pushbuttons, OFF-STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-115/116 |
822-2182-101
- TCAS Control
| Price | Condition | Status |
|---|---|---|
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
822-2182-103
- TCAS Control
| Price | Condition | Status |
|---|---|---|
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
822-2182-107
- TCAS Control
| Price | Condition | Status |
|---|---|---|
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
822-2182-109
- TCAS Control
| Price | Condition | Status |
|---|---|---|
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
822-2182-111
- TCAS Control
| Price | Condition | Status |
|---|---|---|
| REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
Why do some parts indicate "REQUEST" or “RFQ” on the Southeast Aerospace website?
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
