Picture of product VU10-122-2
Part #: VU10-122-2
Model: VU10-122-2
Desc: Antenna VHF/UHF White
OEM: Dayton-Granger
Part Number :






FEATURES

  • VU10-122-2 is a vertically-polarized, VHF/UHF communications antenna that is constructed of fiberglass and epoxy materials
  • Antenna has been aerodynamically enhanced to minimize drag
  • Constructed of fiberglass and epoxy materials
  • Interior filled with lightweight foam to eliminate damage from environmental conditions
  • BNC Connector for VHF; TNC connector for UHF
  • Omnidirectional radiation pattern
  • Aerodynamically designed to minimize drag; can be utilized on higher speed aircraft



SPECIFICATIONS
height: 14.4 in. (365.8 mm) Weight: 3.5 lbs.  max (1.59 kg)
Impedance: 50 Ohms Frequency: 116-152 MHz, 225-400 MHz
Power handling: VHF: 40 Watts, UHF: 100 Watts VSWR: 2.0:1
Polarization: Vertical Approvals: MIL-E-5272C
Radiation Pattern: Omnidirectional Finish: White

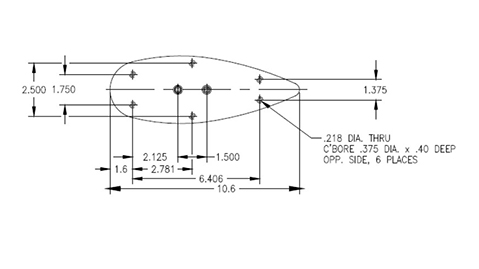

                                                                                                                                              VU10-122 Antenna Diagram

Part Number: Description:
vu10-122-2 VHF/UHF Comm Antenna (White)






VU10-122-2
- VHF/UHF Antenna (White)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
