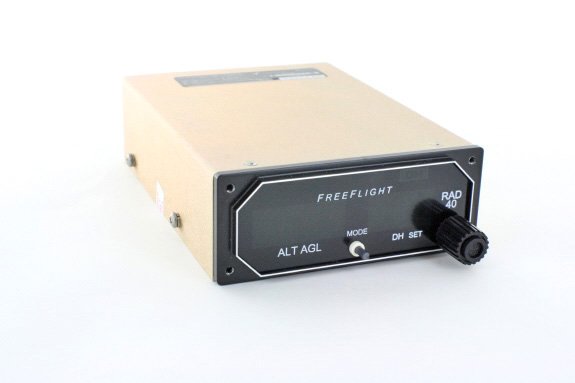

Model: RAD-40
Desc: Radar Altimeter Display
OEM: FreeFlight
Sched-B: 8529904740
Part Number :



RAD-40
FEATURES
  • Panel-mount Radar Altimeter Display
  • Compatible with the FreeFlight Systems RA-4000 & RA-4500 Radar Altimeters
  • Provides critical AGL information
  • Bright LED
  • RS-422 Serial Interface
  • Rotary knob on front panel
  • Knob sets decision height (DH)
  • When the preset altitude is reached, a DH LED is illuminated and a DH discrete output is set
  • 5 trip-point discrete outputs (100-1000 ft) to signal additional alerts
  • Optional night vision goggle (NVG) compatible display
  • Round faceplate adapter for display
  • -0200 version fixes false trigger issue & updated software raised to DO-178B, Level C



SPECIFICATIONS
Altitude Range: -99 to 9999 ft (will show -20 to +2500 ft when used w/RA-4500) Power Requirements: 9 - 36 VDC; 450 mA @ 28 VDC
Environmental: -4°F to +131°F; Alt: 50,000 ft Dimensions: 1.39"H x 3.54"W x 4.62"L
Weight (2): 0.38 lbs Type:  LED, yellow seven segment
Update Rate: 2 times/sec Decision Height Selection: 10-ft increments to 200 ft, 50-ft increments from 200 to 950 ft
Flags:

Displays Dashes when altimeter is unlocked ("----")

 Self-Test: Lights all "8's" for LEDs and activates the DH LED
DH Alert: Internal DH LED and external discrete output Trip Point Outputs: Five fixed trip points: 100, 150, 200, 500 & 1000 ft
FAA: TSO-C87 EASA: ETSO-2C87
Environmental: DO-160F Software: DO-178B, Level D (-0200 software versions: DO-178B, Level C)
Part Number: Display:
84939-00-0100 Basic RAD-40 (Unit Only) - REPLACED by -0200
84939-00-0200 Basic RAD-40; Replaces 84939-00-0100; DO-178B, Level C
84939-10-0100 Basic RAD-40 NVG (Unit Only) - REPLACED by -0200
84939-10-0200 Basic RAD-40 NVG; Replaces 84939-10-0100; DO-178B, Level C
87347-00 Radar Altimeter Display
87347-10 Radar Altimeter Display
RA4500/RAD40 Shipset Complete System (Basic RAD-40 Version)
RA4500/RAD40 NVG Shipset    Complete System (RAD-40 with NVG)



84939-00-0200
