| Part #: | |
|---|---|
| Model: | RA-335 |
| Desc: | Radio Altimeter Indicator |
| OEM: | Honeywell |
| NSN: | |
|---|---|
| Sched-B: | 9014206000 |
| ECCN: | |
| Cage Code: | 22373 |
Select part number above to view pricing and availability.
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | OH OUTRIGHT | REQUEST LEAD TIME |
|
|
| REQUEST | OH EXCHANGE | REQUEST LEAD TIME |
|
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

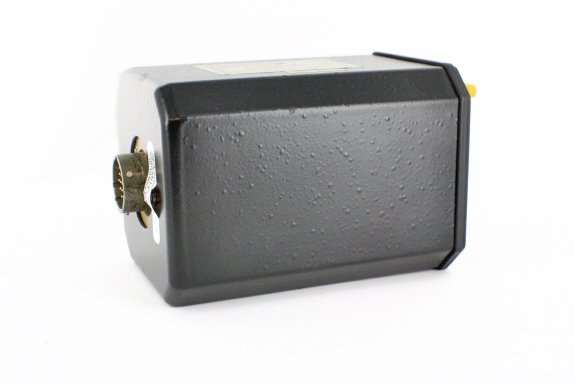

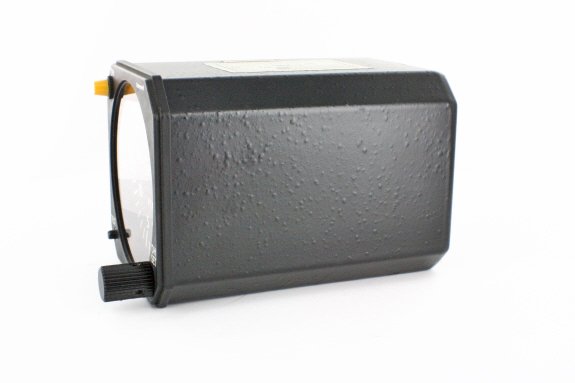

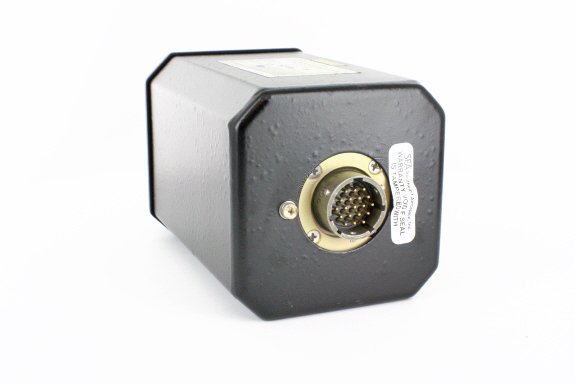

RA-335
- Certain parts controlled by the US DOS or DOC, Export License Required - Contact SEA for more information
- Radar altimeter indicator used in AA-300 system
- Designed for helicopter use with a max range of 1500 feet and expaned scale from 0-200 feet
- Servo-driven pointer displays
- Provides DH bus output based on DH bug setting
- DH output is grounded at and below the DH altitude selected and may be used to drive audible warning device or annunciator to alert the pilot
- Interchangeable with RA-315 Helicopter version
- Pilot Activated Self Test (PAST) button to verify system operation
- Bezel available in black or gray color (see table below)
- Lighting available in 5 or 28 VDC blue/white (see table below)
| Dimensions: | 3.27"W x 3.27"H x 4.50"D | Weight: | 1.5 lbs. |
| TSO: | C-87, RTCA DO-160 | Power Requirements: | 28VDC |
| Temperature: | -25C to 55C | Altitude: | 50000 ft. |
| Part Number | Radar Altimeter Indicator Description: |
|---|---|
| 7000839-904 | Black bezel, 0-1500, 5V AC/DC blue-white lighting |
| 7000839-905 | Black bezel, 0-1500, 28V AC/DC blue-white lighting |
| 7000839-923 | Black bezel, 0-2500, 5V AC/DC NVIS Green "A" lighting. Export License Required |
NSN: 5841-01-276-4232
| Price | Condition | Status |
|---|---|---|
| REQUEST | OH OUTRIGHT | REQUEST LEAD TIME |
| REQUEST | OH EXCHANGE | REQUEST LEAD TIME |
| Price | Condition | Status |
|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
| Price | Condition | Status |
|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
