| Part #: | |
|---|---|

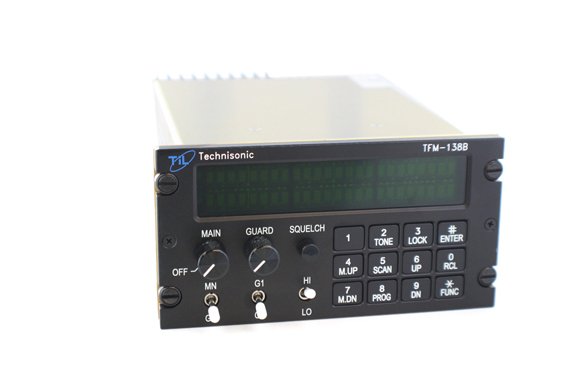

| Model: | TFM-138D |
| Desc: | Transceiver, 138 - 174 MHz |
| OEM: | Technisonic |
| NSN: | |
|---|---|
| ECCN: |
Select part number above to view pricing and availability.
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | RFQ | REQUEST LEAD TIME |
|
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
- Airborne VHF FM Transceiver
- 138-174 MHz in 2.5 kHz steps
- 12.5 kHz (narrow band) or 25 kHz (wide band) channel spacing
- Two channel synthesized guard receiver
- 120 channels of preset memory
- Scan and priority scan
- Dedicated AM receiver DF output
- All available CTCSS tones, DPL/DCS codes
- PC uploading and downloading
- Can operate without restriction on any split frequency pair available within the band
- Function control by a panel mounted 12-button keypad
- Function identifier and other related data are presented on 48-character, two-line LED matrix display
- 3.1 lbs, DZUS mounted and self contained
- Currently being deployed in Canadian Military Search & Rescue helicopters
| Frequency Range: | 138.000 MHz to 174.000 MHz | Tuning Increments: | 2.5kHz |
| Operating Mode: | F3E simplex or semi-duplex | Channel Spacing: | 12.5 or 25 KHz |
| Memory Positions: | 120 Channels | Physical Dimensions: | Approx. 8" x 3" x 5.75" |
| Weight: | 3.1 lbs | Temperature Range: | -45°C to +70°C |
| Guard Receiver: | 2 channels programmed with: Tx/Rx Frequency, Tx CTCSS or DPL tone, 9 character alpha numeric title |
CTCSS Squelch Capability: | All CTCSS tones available |
| DPL Capability: | All standard codes | DTMF Encoder: | All standard DTMF tones |
| Audio Output: | 0.5 Watts to 600 Ohms | Speaker Output: | 2.5 Watts into 4 Ohms |
| Back Lighting: | 28V (standard) or 5V (specify) | Display: | Green (standard), red (specify) |
| Audio Distortion: | 5% max. @ 1mV, RF | Transmitter RF Power Output: | |
| power requirement: | 28.0 Vdc +/- 15% |
| Part Number: | Description: |
|---|---|
| 981086-1 | Green Display and 28V back lighting |
| 981086-1 (5V) | Green Display and 5V back lighting |
| 981086-2 | Red Display and 28V back lighting |
| 981086-2 (5V | Red Display and 5V back lighting |
| Price | Condition | Status |
|---|---|---|
| RFQ | RFQ | RFQ |
| Price | Condition | Status |
|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
| Price | Condition | Status |
|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
Why do some parts indicate "REQUEST" or “RFQ” on the Southeast Aerospace website?
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
