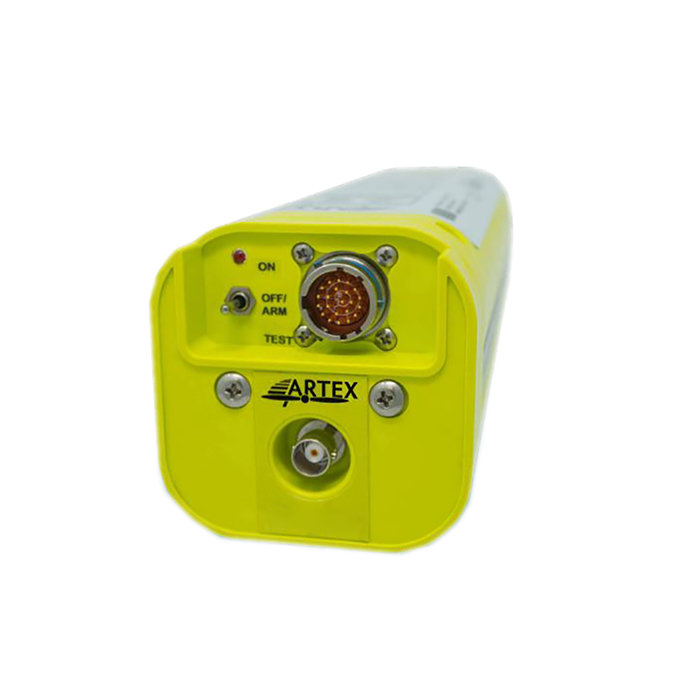

Picture of product ELT4000M HM

Part #: A3-06-3260-1

Model: ELT4000M HM

OEM:

ACR/Artex

Desc:

Emergency Locator Transmitter (Military - Helicopter)

Part Number :
Bendix King logo


ELT4000M HM

FEATURES

  • Automatic Fixed Emergency Locator Transmitter
  • Three-Frequency distress beacon, digital 406 MHz and anolog 243 and 121.5 MHz homing signals
  • Auto activation via internal G-switch
  • ARTEX ELT 4000M HM Helicopter version with 5 axis G-switch available
  • Single antenna connector and cable to transmitterblad-Blade, Rod, and Whip Antenna available
  • Compatible with legacy antennas
  • Easy maitenance and installation
  • Many cockpit remote switch options available
  • Can be connected to on-board GPS via Inergrated ARINCA429 interface
  • Compatible with ARTEX 406Test.com Satellite Confirmation Testing System
  • If optional GPS data is embedded in digital transmission the search radius reduces down to 100m



SPECIFICATIONS

Operating Frequencies: 406.031 MHz (± 1 kHz)  / 121.5/243 MHz (+/0.005%)  Output Power: 406MHz: 5W for 24 hours @ -20°C to +55°C, 121.5MHz: 50mW for 50 hours @ -20°C to +55°C
battery: 5 year Alkaline , Voltage 12.0, Amp-Hour Rating 10.0 Activation method: Automatic by 4.5 +/-0/5 ft/sec  (2.3 G) Primary G-Switch or Manual
Battery: 6 year Lithium, Replacement Battery (P/N: 8322) Temperature: Operating: -20°C to +55°C (-4°F - 13°F)  Storage: -55°C to +85°C (-67°F - 185°F)
certifications:  (Pending) FAA, EASA Via Bilateral Approved, CAAC, ANATEL, IndustryCanada measurements: 11.63" (L) x 3.42 (W) x 4.15 (H) inches (29.5 x 9.9 x 10.5 cm)



Part Number: Description:
A3-06-3260-1 Emergency Locator Transmitter (Military - Helicopter)
°C



°C
A3-06-3260-1
- Emergency Locator Transmitter (Military - Helo)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Long messaging transmits longtitude and latitude.  Short messaging does not.


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
