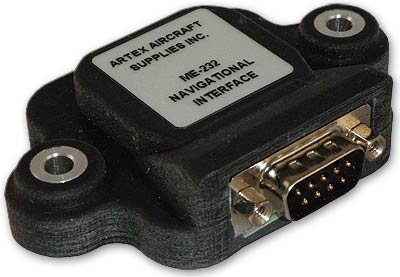

Picture of product ME-232

Part #: 455-6800

Model: ME-232

OEM:

ACR/Artex

Desc:

Nav Interface

Part Number :


ME-232
FEATURES
  • Navigation Interface
  • Continually receives & stores the aircraft GPS location data
  • Designed to interface between the Artex ME406 beacon & virtually every GPS receiver used in general aviation aircraft
  • Compatible with RS-232 & NMEA-0183 GPS protocol outputs
  • Uses a single output from the GPS receiver to update the ELT
  • Pinpoint location accuracy
  • Small & lightweight
  • System requires a custom harness (included w/kit) & two additional wires to be run from the front of the aircraft to the location of the ELT
  • Aircraft power is required for operation



SPECIFICATIONS
Weight:

2 oz. (unit) 4 oz. (harness)

Dimension: 3.2" x 2.2" x 0.8"
Voltage Requirements: 10 to 32VDC Tested to: DO-160F and DO-204A standards
Humidity: 95% for 48 Hours Altitude: 50,000 feet
Temperature: -40°C to 70°C Operating -55°C to 85°C Storage
Part NumberME-183 Nav Interface Description:
455-6800 Complete system (includes nav interface & harness)



455-6800
- Nav Interface
