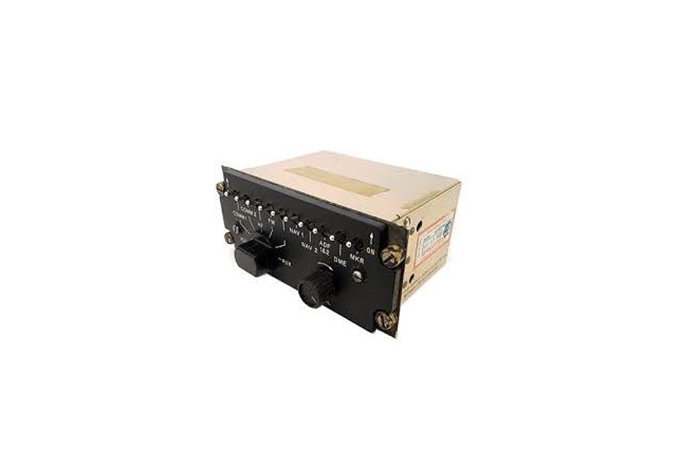

Picture of product A301-6W
Thumbnail product image of A301-6W
Thumbnail product image of A301-6W

Part #: A301-6W

NSN:

5831-01-477-6896

OEM:

Andrea

Part Number :

A301-6W
FEATURES
  • The A301-6 is a miniature, lightweight, self contained, solid state Intercommunication System Control of great flexibility
  • Designed to be the basic control unit for a multi-position (up to 12) intercommunication system of advanced design
  • It employs solid-state relay circuits and modular microphone and headset amplifiers
  • The A301-6 was designed to accommodate all the various communication and warning signal components normally employed in commercial aircraft
  • It will provide specified performance from a 5 ohm Dynamic Microphone or a 100 ohm
  • Carbon Microphone and to an 8 ohm or 600 ohm headset
SPECIFICATIONS
INPUT POWER AT 28 VDC INPUT NO SIGNAL: 4.5 Watts Max
 size: 5-3/4" W x 2-5/8" H x 4.75" D
FILTERS : White or Red
LIGHTING: Embedded 27.5 V
weight: 1.75 lbs. Max.
Microphones: 5 ohms Dynamic or 100 ohms Carbon
Headset: 8 ohms or 600 ohms
Int Line: 600 ohms, internally furnished
Transmitter Output: 100 ohms (supplied by aircraft installation)
Receiver Lines: 600 ohms, Rec. 1-4 internally furnished
Connector: 50 Pin Cannon DD50P (Male)
Mating Connector: 50 Pin M24308/2-5 or equal (Female)
Input Voltage: 24 to 29 VDC
Intercommunication: On Int. Line
Transmitters: 6
Receivers: 10 - Controlled by switches
Receiver: 1 - Direct input
Volume Control: 40 dB Range from Max. Audio Output
HEADSET Distortion: 10% Max.
HEADSET Frequency Response: +/-6 dB from 300 to 6000 Hz
POWER VOLTAGE 5 ohm Microphone: 1 to 1.0 Millivolt
POWER VOLTAGE 100 ohm Carbon Microphone: 1 to 1.0 Volt
Transmitter Lines: Adjustable .1 to 1 Volt
Receiver Lines 4.5 Volts



Part Number INTERCOMMUNICATION SYSTEM Description:

A301-6W

Standard white lighted panel
A301-6WCR White lighting and Cockpit Voice Recorder output
A301-6R Night Vision red lighted panel





Serial # 8003385
Condition SV
Mods None
Tag Date 06/01/22
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 8802415
Condition SV
Mods None
Tag Date 06/01/22
Shop Southeast Aerospace Inc.
Warranty 6 Months
A301-6W
- Audio Panel

NSN: 5831-01-477-6896

Price Condition Status
$1,750.00 SV OUTRIGHT 2 IN STOCK
