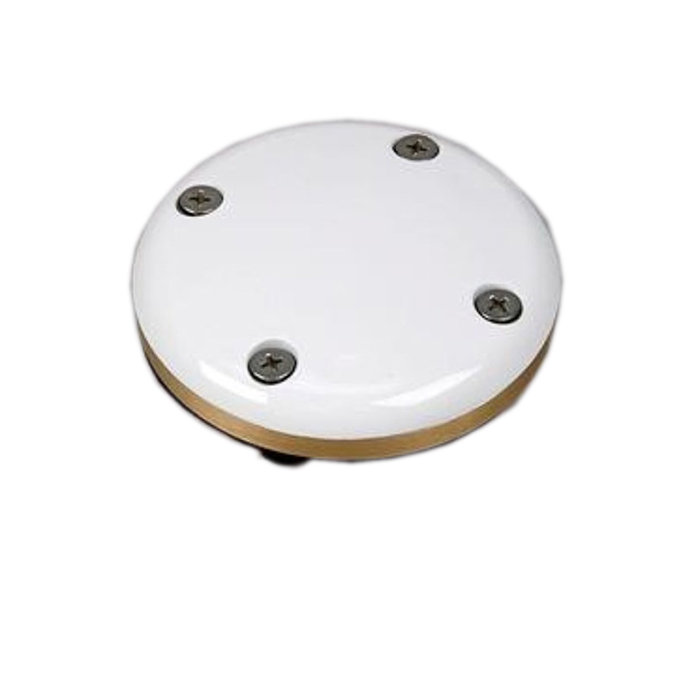

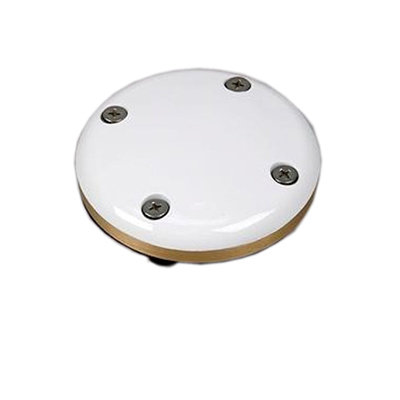

Picture of product ANT-35C1GA-TW-SS-N

Part #: 3G15A-XT-1-NC

Model: ANT-35C1GA-TW-SS-N

NSN:

5985-01-623-7650

OEM:

Antcom

Desc:

GPS Antenna, 33dB Gain

Part Number :

Millitary GPS Antenna



3G15A-XT-1-NC



FEATURES

  • Front/Back Mount Configuration
  • Mechanical configuration is a spherical radius molded radome which provides enhanced protection against rain and ice
  • Bias voltage from 2.5-24 V DC for operation
  • Band pass filtering, DC bias provided through the coaxial connector
  • Designed to operate at the GPS L1 frequency of 1575.42 MHz



SPECIFICATIONS
diameter: 3.50 in.[ 88.90 mm] height: 0.690 in. [17.53mm] (for Active),0.58"[14.73](for Passive) 6.5 oz. (184.3 g)
finish:  Skydrol Resistant Polyurethane Enamel material: 6061-T6 Aluminum Alloy Base Composite Radome, Impact,Abrasion,UV, Solvent, Skydrol Resistance, and Fire Retardant
connector: TNC Female temperature: -67 °F TO +185°F [-55 °C TO +85 °C]
altitude: 70,000 ft. vibration: > 30 G's
 Weight: 6.5 oz. (184.3 g) leakage: Hermetically Sealed
frequency: L1: (1575.42 ±12) MH z VSWR: < 1.5:1
IMPEDANCE: 50 ohms POLARIZATION: RHCP
RADIATION PATTERN: Hemispherical LIGHTNING PROTECTION: DC Grounding
Part Number: Description:
3G15A-XT-1-nc GPS Antenna, 33dB Gain



3G15A-XT-1-NC
- L1 GPS Antenna

NSN: 5985-01-623-7650

Price Condition Status
$325.00 NEW OUTRIGHT REQUEST LEAD TIME
