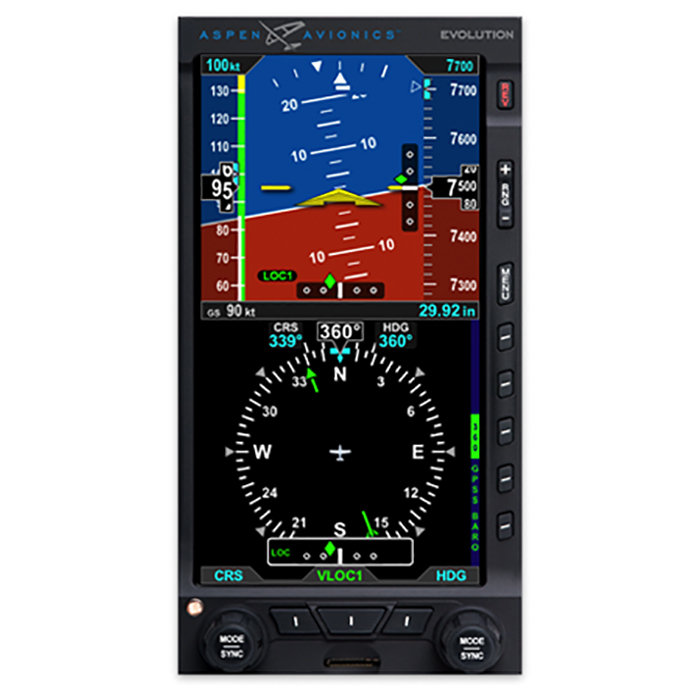

Picture of product E5

Part #:

Model: E5

OEM:

Aspen Avionics

Part Number :
aspen

EFD1000 E5
 FEATURES
  • Backup attitude indicator not required
  • Consolidates traditional attitude indicator and directional gyro (DG) into a single display
  • Compatible with most legacy autopilots
  • Includes Global Positioning System (GPSS) Steering, and attitude heading reference system (ADAHRS)
  • Large, 6.0" diagonal, 400 x 760 pixel TFT Active Matrix LCD screen with bolder/brighter resolution
  • Rechargeable lithium-ion external backup battery with up to two hours of battery life
  • Works with your panel’s existing avionics
  • Provides a path for removal of vacuum instruments
SPECIFICATIONS

General Specifications:

Dimensions:  3.5"W x 7"H x 6.35"D Weight: 2.9 lbs (w/mounting bracket)
Display Type:  6.0" Diagonal TFT Active Matrix LCD  Display Colors:  32,768
display resolution: 400x760 display Backlight:  High Intensity White LED

Operational Specifications:

Operating Temp:  -20°C to +55°C Storage Temp:  -55°C to +85°C
Max Un-Pressurized Operating:  35,000 ft. Cooling:  Integral Fan
Max Humidity:  95% at 50°C   Input Voltage:  +9 to +32 Volts DC
Max Current:  2.4 Amps @ 28VDC / 4.8 Amps @ 14VDC

I/O Specifications:

ARINC 429 Inputs:  5 Low Speed  ARINC 429 Outputs:  1 Low Speed
RS-232 Inputs:  RS-232 Outputs:
Pitot/Static:  Quick Connect

Certification Specifications:

Environmental:  RTCA DO-160E  Software:  RTCA DO-178B Level C






Part Number EFD1000 e5 System Description:
920-00101-001 EFD1000 E5 System with Top Mount RSM
920-00101-002 EFD1000 E5 System with Bottom Mount RSM
920-00101-011 EFD1000 E5 System with ACU & Top Mount RSM
920-00101-012 EFD1000 E5 System with ACU & Bottom Mount RSM



920-00101-001
- Dual Electronic Flight Instrument
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
920-00101-002
- Dual Electronic Flight Instrument
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
920-00101-011
- Dual Electronic Flight Instrument
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
920-00101-012
- Dual Electronic Flight Instrument
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
