Part #: 920-00003-017

Model: EFD1000C3 Pro

Aspen Avionics

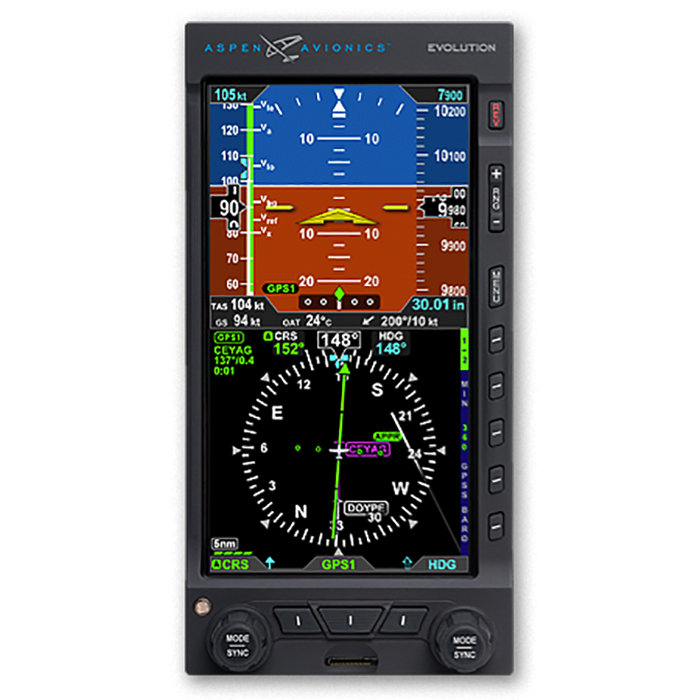

product image
Part Number :
EFD1000C3 Pro
EFD1000C3 Pro Features:
  • Advanced EFIS six-pack replacement
  • The only upgradable PFD-only EFIS on the GA market
  • Works with your panel’s existing avionics — nearly every GPS or nav radio
  • Broadest autopilot/ flight director support
  • Optional traffic (2)
  • Expandable and upgradable
  • Airspeed and altitude tapes
  • Integral altitude alerter
  • Slaved directional gyro with heading bug
  • Base map with flight plan legs and waypoints, curved flight paths(1), and nearby navaids
  • GPS flight plan map views: 360º & ARC
  • Display of real-time winds aloft, OAT, TAS, and ground speed (1)
  • Integral Air Data Computer and Attitude Heading Reference System (AHRS)
  • Built-in backup battery and emergency GPS
  • Brilliant, direct sunlight-readable, 6-inch 760x400 TFT active matrix LCD display (140 pixels/inch)

General Specifications (per EFD):

Overall Dimensions    3.50” W x 7.00”H x 4.15”D
Weight     2.9 lbs. with mounting bracket
Display Type     6.0” Diagonal TFT Active Matrix LCD
Display Resolution    400x760
Display Backlight    High Intensity White LED
Display Colors    32,768

Operational Specifications:

Operating Temp   -20°C to +55°C

Storage Temp   -55°C to +85°C
Max Operating Altitude (unpress.)   35,000
Cooling     Integral Fan
Max Humidity    95% at 50°C
Input Voltage    +8 to +32 Volts DC
Max Current     2.4 Amps @ 28 Vdc  /  4.8 Amps @ 14 Vdc


Evolution Flight Display System


I/O Specifications:

ARINC 429 Inputs   5 Low Speed
ARINC 429 Outputs   1 Low Speed
RS-232 Inputs   5
RS-232 Outputs   3
Pitot / Static   Quick Connect

Certification Specifications:

FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

RTCA DO-178B Level C


See Environmental Qualification Sheet






- Primary Flight Display System (Class 3)
