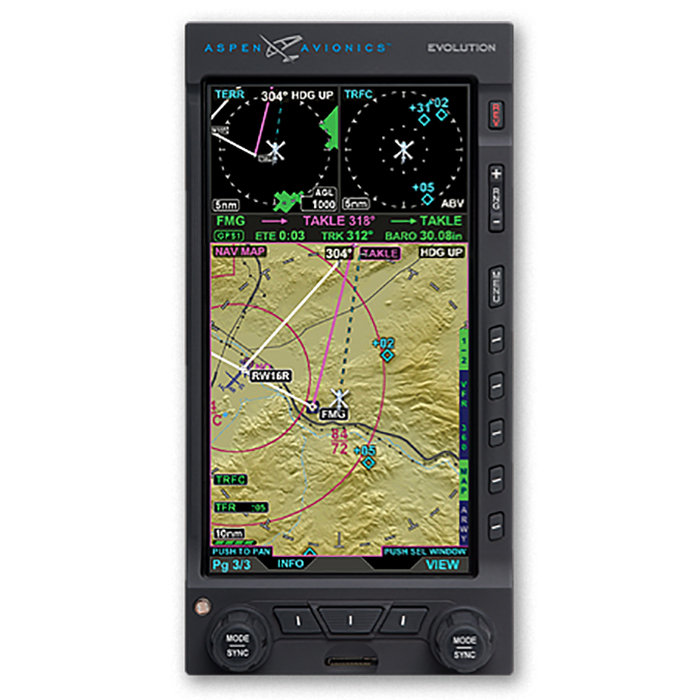

Picture of product EFD1000H MFD

Part #: 920-00005-120

Model: EFD1000H MFD

OEM:

Aspen Avionics

Part Number :

 aspen

Efd1000h mfd

FEATURES
Evolution 1000H MFD Features:
  • Special vibration mount meets DO-160F helicopter vibration standards.
  • Duplicate sensor set providing full PFD redundancy
  • May eliminate requirement for backup instruments
  • Sectional-style moving maps with hazard awareness overlays
  • Charts and geo-referenced airport diagrams(1)
  • Customizable screen layouts
  • Built-in backup battery and emergency GPS(2)
  • Evolution Hazard Awareness
  • Built-in terrain awareness
  • Traffic overlay on map via interface(3)
  • Weather WX500 Stormscope interface
  • Datalink weather(4)
  • Hi-res NEXRAD radar
  • AIRMETs
  • Radar coverage map
  • SIGMETs
  • Precipitation type (at surface) TFRs
  • Echo tops Storm weather tracks
  • Cloud tops Lightning
  • Winds aloft (by altitude) METARs
  • Satellite mosaic (by altitude)
  • TAFs

SPECIFICATIONS

General Specifications:

Overall Dimensions   3.50” W x 7.00”H x 4.15”D
Weight   2.9 lbs. with mounting bracket
Display Type   6.0” Diagonal TFT Active Matrix LCD
Display Resolution   400x760
Display Backlight   High Intensity White LED
Display Colors   32,768

Operational Specifications:

Operating Temp   -20°C to +55°C
Storage Temp   -55°C to +85°C
Max Operating Altitude (unpress.)   35,000 ft.
Cooling   Integral Fan
Max Humidity   95% at 50°C
Input Voltage   +8 to +32 Volts DC
Max Current   2.4 Amps @ 28 Vdc  /  4.8 Amps @ 14 Vdc





Evolution Flight Display System

I/O Specifications:

ARINC 429 Inputs   5 Low Speed
ARINC 429 Outputs   1 Low Speed
RS-232 Inputs   5
RS-232 Outputs   3
Pitot / Static   Quick Connect

Certification Specifications:

FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

Software
RTCA DO-178B Level C

Environmental
RTCA DO-160E

Categories
See Environmental Qualification Sheet











920-00005-120
- MFD System (Helicopter)
Price Condition Status
$10,150.00 NEW OUTRIGHT REQUEST LEAD TIME
