Model: RSM

Aspen Avionics
product image
Part Number :
aspen
RSM
FEATURES
  • Remote Sensor Module for use in Aspen EFD systems
  • Physically resembles traditional GPS antenna; follows industry standard mounting hole pattern
  • Contains all sensors remotely located from the PFD display unit
  • Powered by the PFD through shielded harness
  • Contains the following sub-sytems: Outside Air Temperature (OAT) sensor, Emergency backup GPS (RSM GPS Version), Magnetic flux sensors
  • 3 versions available: Top Mount w/ Emergency backup GPS, Top Mount w/o GPS, Bottom Mount w/o GPS

SPECIFICATIONS

WIDTH: 2.65 in. (Measured from base) height: 1.1 in. maximum (Measured from Base)
Length: 4.40 in. (Front to rear) weight: 0.5 lbs
operating temperature: -55°C to +70°C STORAGE TEMPERATURE: -55°C to +85°C
COOLING: None Required Max humidity: 95% at 50°C
INPUT VOLTAGE: Provided by EFD nOMINAL CURRENT: Included in EFD Current
Part Number  Description
910-00003-001 Remote Sensor Module, Top Mount W/ GPS Sensor
910-00003-002 Remote Sensor Module, Top Mount W/O GPS (Requires v2.x or Later)
910-00003-003 Remote Sensor Module, Bottom Mount W/O GPS(Requires v2.x or Later)
910-00003-011 Remote Sensor Module, Top Mount W/GPS
910-00003-012 Remote Sensor Module, Top Mount W/O GPS(Requires v2.x or Later)
910-00003-013 Remote Sensor Module, Bottom Mount W/O GPS(Requires v2.x or Later)

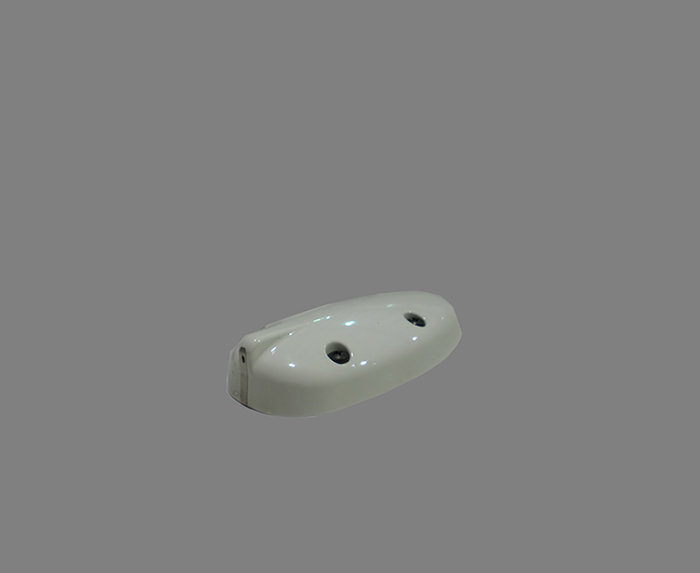

RSM.JPG RSM2.JPG
910-00003-001
- Remote Sensor Module, Top Mount w/ GPS

NSN: 5895-01-615-0002

Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
910-00003-002
- Remote Sensor Module, Top Mount w/o GPS
Price Condition Delivery
$645.00 NEW OUTRIGHT CALL OR RFQ
910-00003-003
- Remote Sensor Module, Bottom Mount w/o GPS
Price Condition Delivery
$645.00 NEW OUTRIGHT CALL OR RFQ
910-00003-011
- Remote Sensor Module, Top Mount w/ GPS Sensor
Price Condition Delivery
$700.00 NEW OUTRIGHT CALL OR RFQ
910-00003-012
- Remote Sensor Module, Top Mount w/o GPS
Price Condition Delivery
$645.00 NEW OUTRIGHT CALL OR RFQ
910-00003-013
- Remote Sensor Module, Bottom Mount w/o GPS
Price Condition Delivery
$645.00 NEW OUTRIGHT CALL OR RFQ

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

According the Aspen EFD installation manuals, the Remote Sensor Module has the following mounting limitations:

  • The RSM must be mounted within ±4º to the longitudinal axis of the aircraft
  • The RSM must be mounted within ±10º to the zero degree roll “wings level” axis
  • The RSM must be mounted within ±10º to the zero pitch axis “waterline” of the airframe
  • The RSM must be mounted to a relatively flat surface such that when installed it will not deform the aircraft skin and must not allow more than a .030” gap between RSM and skin.
  • Mounting the RSM to, or making other penetrations through, the aircraft pressure vessel is beyond the scope of the STC. Separate FAA approval of pressure vessel penetrations required to accommodate RSM mounting is required prior to the installation of the remaining EFD1000 system components under the EFD AML-STC
  • Mounting the RSM to the exterior of a composite or fabric skinned aircraft structure is beyond the scope of the STC. To mount the RSM on composite or fabric skin aircraft structures, separate FAA approval of the RSM mounting is required prior to the installation of the remaining EFD1000 system components under the EFD AML-STC
