Part #: 850-00222-000

Model: AXP322

OEM:

Avidyne

Desc:

ADS-B Out Remote Mount Transponder

Part Number :

Avidyne

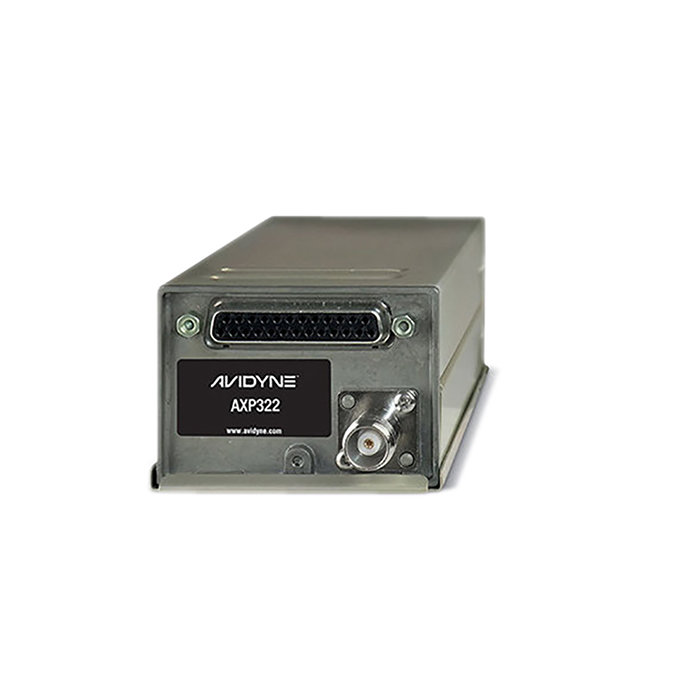

AXP322 ADS-B Out Remote Mount Transponder

FEATURES

  • The ADS-B Out AXP322 Transponder is a remote-mounted Class 1 Mode S Level 2 Datalink Transponder
  • Provides support for 1090MHz Extended Squitter (ES)
  • Meets all the current requirements for Mode S elementary surveillance transponders for both IFR and VFR flight
  • Designed to be controlled with Avidyne’s IFD Series GPS/NAV/COM systems
  • The AXP322 also supports the latest Version 2 1090 MHz Automatic Dependent Surveillance Broadcast (ADS-B) Extended Squitter, known as “ADS-B out”
  • When coupled with the Avidyne’s IFD Series transmits position information to appropriately-equipped ground stations and other aircraft
  • Improved airborne surveillance, provides vital information for airport ground surveillance, and is a key feature of future airspace plans in the U.S. and internationally

SPECIFICATIONS

dimensions: Height 1.89” (48mm) x Width 2.68” (68 MM) x Depth 6.3” (160 mm) weight: 0.97 lbs. (0.35 kg)
power: 9-33  V watts: 250 W at connector
idle: 0.15 A evironmental: No external cooling fan required
active: 0.34 A TEMPERATURE: -40°C to +70°C
Part Number Description
850-00222-000 AXP322 ADS-B Out Remote Mount Transponder



850-00222-000
- ADS-B Out Remote Mount Transponder
Price Condition Status
$2,650.00 NEW OUTRIGHT REQUEST LEAD TIME
