Model: AXP340

Avidyne - Mode S ADS-B Transponder

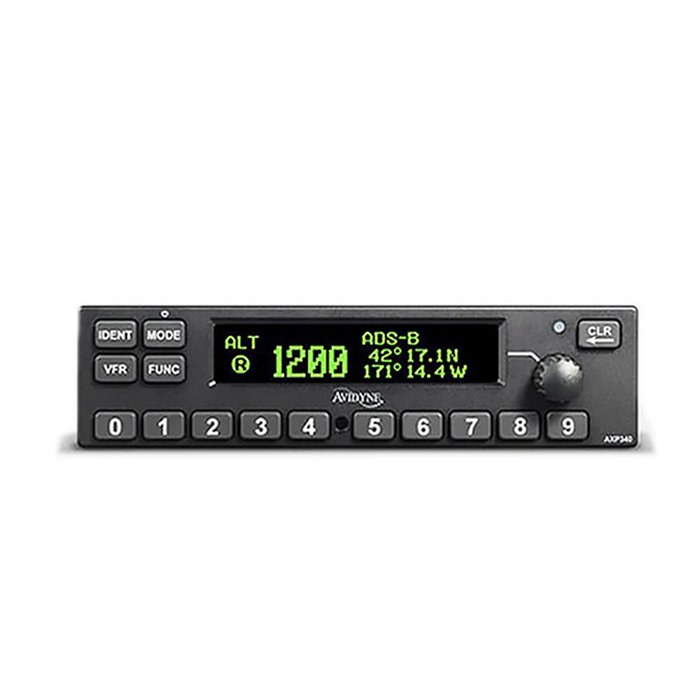

product image
Part Number :



AXP340

FEATURES
  • ADS-B Out Transponder
  • Panel-mounted Class 1 Mode S Level 2 Datalink Transponder
  • Support for 1090MHz Extended Squitter (ES)
  • Meets all current requirements for Mode S elementary surveillance transponders for IFR & VFR flight
  • Slide-in replacement for existing KT76A/KT78A transponders
  • Designed to easily upgrade existing Mode A/C equipment to Mode S
  • Affordable and lightweight Mode S Surveillance & ADS-B Out solution for fixed wing & helicopter operators
  • Adds additional functionality like:
    • Direct-entry Numeric keypad
    • Pressure Altitude & GPS Lat/Lon readout
    • Flight ID entry
    • One-touch VFR code entry
    • Stop Watch Timer
    • Flight Timer
    • Altitude Alerter
SPECIFICATIONS
Dimensions: 6.30" W x 1.57" H x 9.40" D weight: 2.98 lbs
type: Class 1 Mode S Level 2es Datalink
Elementary Surveillance
Certification: TSO C112d, TSO C166b
ESTO 2C112d, ETSO C166b
Compliance: ED73E, DO160G, DO178B level B, DO181E, DO254 level C, DO260B, AC 20-165 ADS-B Out Power: 10-33V, Idle: 0.22 A, Active: 0.45 A, 240W nominal at connector
Environmental: -20 to +55C
35,000 ft
No external cooling fan required
GPS Compatibility: Avidyne GPS (including R9)
Garmin GNS430W/530W Series
interfaces: Gray Code & Serial Altitude Inputs
Serial Altitude Output
External Standby Input
Weight on Wheels Input
External Ident Input

Part Number Transponder Description:
850-00219-000 Black
850-00219-001 Gray



850-00219-000
- Mode S Transponder (Black)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

850-00219-001
- Mode S Transponder (Gray)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

There are no Frequently Asked Questions at this time. Please contact us at questions@seaerospace.com if you have any questions for us to answer.
