Part #:

Model: EX5000

Avidyne - Multi-Function Display

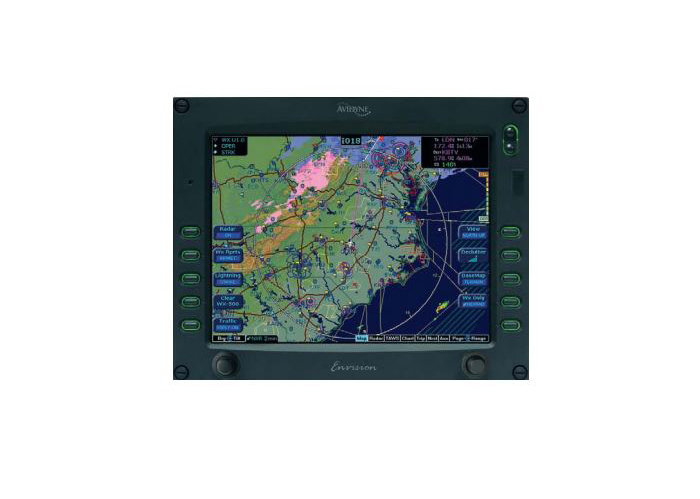

product image
Part Number :



 Avidyne

EX5000 Multi-Function Display



SPECIFICATIONS

display: High Brightness Color Active Matrix LCD, sunlight readadle diagnoal size: 10.4 inches
resolution: SVGA 800 X 600 interface: RS-232, USB
viewing angle (landscape): ±60 Degrees Horizontal, ±45/-15 Degrees Vertical viewing angle (portrait): ±60 Degrees Vertical, ±45/-15 Degrees Horizontal
voltage: 18-35 VDC, Negative ground cooling requirements: Unrestricted airflow to the top and bottom of the landscape chassis or both sides of portrait chassis
cg from instrument panel (landscape): 700-0004-001/002/007/008/009/010, 700-00004-004/005/006, 700-00030-005, 1.60 inches cg from instrument Panel (portrait): 700-00004-104, 1.60 inches
Height (Landscape): 8.50 inches height (portrait): 11.0 inches
width (landscape): 10.7 inches width (portrait): 7.8 inches
depth: 700-00004-001/002   4.3 inches (3.7 inches behind the panel), 700-0004-004/005/006/007/008/009/010/104, 700-00030-005/805 5.2 inches (4.6 inches behind the panel) current:

700-00004-001/002/007/008/009/010, 700-00030-805  Maximum 3.5 at 28V

700-00004-004/005/006/104, 700-00030-005/805  Maximum 4.0 at 28V

WEIGHT:

700-00004-001/002/007/008/009/010, 700-00030-805  6.4 lbs

700-00004-004/005/006, 700-00030-005   7.6 lbs (with Narrowcast)

700-00004-104   7.6 lbs. (with Narrowcast)

EX5000-SERIES ONLY: ARINC 429, ARINC 453, and TTL
Part Number mFD Description  AIRCRAFT
700-00004-006 Landscape MFD, ARINC 429, Internal Datalink Transceiver Cirrus SRV, SR20/22, Lancair, DA40, PA28/32/44, A500
700-00004-008 Landscape MFD, ARINC 429 databus SRV, SR20/22, PA28/32/44
700-00004-010 Landscape MFD, ARINC 429 databus Aftermarket Installations
700-00030-104 Portrait MFD, ARINC 429, Internal Datalink Transceiver Lancair 350/400, Aftermarket Installations
700-00030-005 Landscape MFD, ARINC 429, Internal Datalink Transceiver, Radar, Twin Engine PA34/46, Envision, A500
700-00030-805 Landscape MFD, ARINC 429, Rradar, Twin Engine PA34/46, A500





850-00013-018
- MFD w/o Radar Interface
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
850-00013-025
- MFD w/ RDR-2000 Interface
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
850-00013-320
- CMax Approach Charts
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
