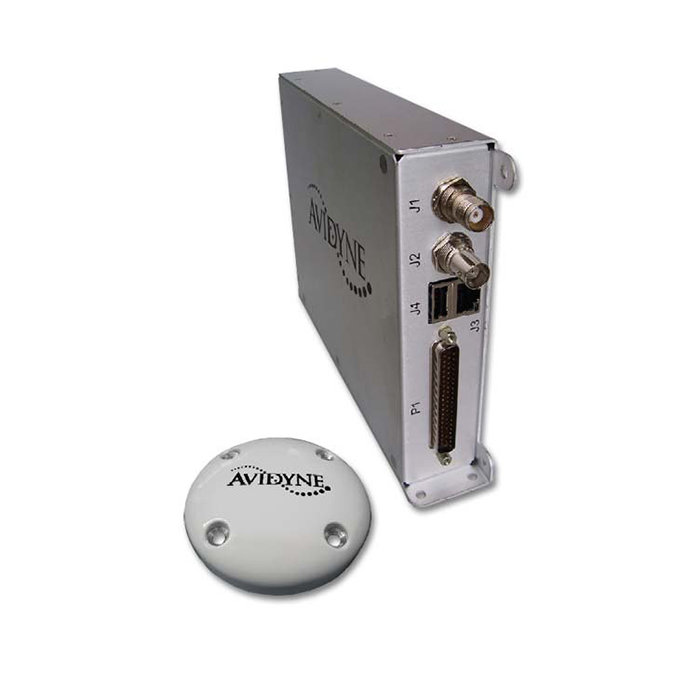

Picture of product MLB700

Part #:

Model: MLB700

OEM:

Avidyne

Desc:

Broadcast Datalink Receiver w/o Audio

Part Number :

FOR REFERENCE ONLY

avidyne-logo



MLB700
FEATURES
  • Broadcast Datalink Receiver
  • Aviation-quality datalink graphical weather from WSI, the trusted leader in Aviation Weather
  • Fast, reliable updates via SIRIUS satellite radio network
  • 2 Versions available - a version with only weather, or with weather and SIRIUS satellite radio
  • Audio content is controlled using the easy-to-use RC70 wireless RF remote control from any seat in the aircraft
  • Dual display capability - MLB700 can drive up to two cockpit displays simultaneously
  • Sky-focused ANT71 antenna rejects ground repeated signals for optimum performance
  • Includes WSI's industry leading NOWrad radar mosaic for the up-to-date and high quality aviation weather
  • With subscription upgrade, Storm Track Vectors is included - which shows cell height and movement including speed & fore-casted direction
  • Receives datalinked lightning which is derived from the US Precision Lightning Network
  • The age of lightning is indicated by the color of the icon - white for 0-5 min, yellow for 5-10 min, and brown for 10-15 min
  • Avidyne's CONUS weather data subscription services is offered in 3 levels of service & pricing - Essentials, Performance & Professional



SPECIFICATIONS
TSO: C157 FIS-B Dimensions:  1.5"W x 6.0"H x 8.0"D
Weight: 1.8 lbs Power: 10-32VDC; 0.4A @ 28VDC; 0.7A @ 14VDC
ANT71 Dimensions: 3" Diameter x 0.75" H ANT71 Weight: 1.7 lbs
Display Options: Entegra Release 9; EX600 MFD; EX500 MFD; EX5000 MFD
Part Number: Description:
850-00151-010 WSI Weather Services without Audio
850-00151-011 WSI Weather Services with SIRIUS Radio
