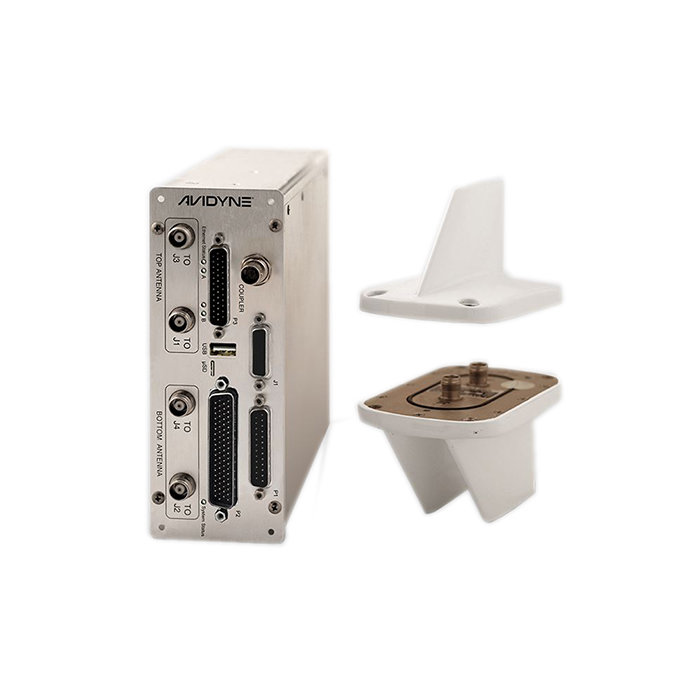

Picture of product SKYTRAX 615

Part #:

Model: SKYTRAX 615

OEM:

Avidyne

Part Number :

avidyne-logo





SKYTRAX 615

FEATURES

  • Dual (top and bottom) directional antennas detect other aircraft sooner and more accurately
  • ADS-B Display Range of up to 40 nm with SkyTrax 620A
  • All SkyTrax models can track up to 50 targets while displaying up to 30
  • hybridized audible and visual alerts with the precise location of conflicting traffic
  • Fully TSO certified and surpass the performance capabilities of many higher-cost traffic systems
  • TAS Display Range: 17nm
  • ADS-B Display Range: 30nm*
  • Vertical Range: ±5,500
  • Altitude Limit: 55,000
  • ARINC 429 Heading Input*: Yes
  • Max Number of Targets Displayed: 30
  • Number of Targets Tracked: 50
  • Active Interrogation: Yes
  • WAAS GPS Position Input: Yes
  • Correlation of Active+Passive Targets: Yes



Part Number: Description:
850-00215-003 Traffic Advisory System





700-00185-003
- Traffic Processor
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
850-00215-003
- Traffic Advisory System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
