Part #:

Model: miniQAR Mk II

Avionica

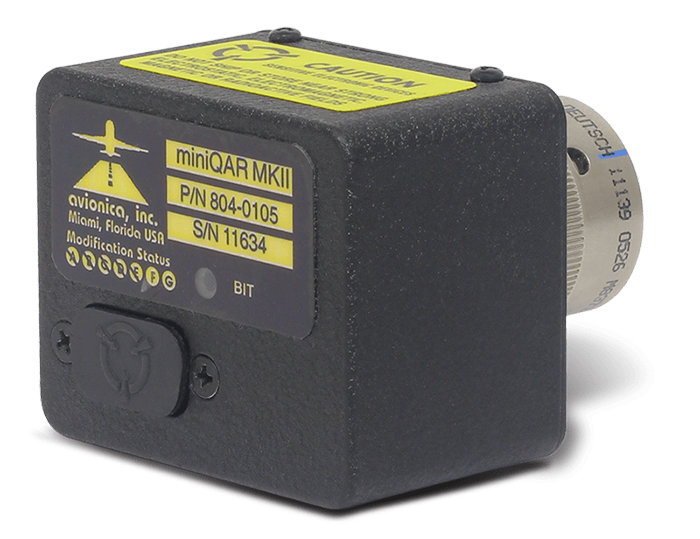

product image
Part Number :



AvionicaFEATURES

  • Solid-state reliability
  • 400 hour recording capacity
  • Installation changed quick-access recording
  • Record up to two ARINC 717 (Harvard Biphase or Bipolar RZ) channels and up to three ARINC-429 channels (high and/or low speed)



SPECIFICATIONS

dimension:

2.6”(L) x 2.2”(W) x 1.8”(H)

WEIGHT:

6.5 ounces

POWER: 28 VDC/100mA. or 115 VAC/25mA
DATA STORAGE: 512 MB, 1GB, 2GB
ENVIRONMENTAL: DO160 Categories - C1XXXB[SCL]XXXXXXZZAZB[UUU]H[XXXX]XXA
softwarE:

DO-178 Level C

CONNECTORS: Rear: MS83723/76R1415N or MS83723/76R1624N or equivalent, Front: DB-9F
AIRCRAFT BUS COMPATIBILITY: ARINC 573, ARINC 717 Biphase ARINC 717 Bipolar (64, 128, 256, & 512 WPS) MIL STD 1553 ARINC 429 RS-232
REAL TIME CLOCK (RTC): Method: RSU II (USB 2.0)Ethernet (10base T) RSU I, Rate: 150 Mbytes/Min 60 Mbytes/Min 10 Mbytes/Min, Power Requirement: None, Aircraft Power, None
current installations: Airbus: A310, A320, A330, ATR: ATR-42, ATR-72, Boeing: 717, 727, 737, 747, 757, 767, F-18 Hornet, Bombardier: Dash-8 Q300, Q400, CRJ-200, Challenger 300 and 605, Cessna: Citation Bravo, Citation Excel, Embraer: 120, 135, 145, 179, 190, Falcon: 50, 900, 2000, Fokker: F100 Gulfstream: GIV, GV, Lockheed: C-140, SAAB: 2000













804-0001
- Quick Access Recorder (Boeing, 115V, 512MB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0005
- Quick Access Recorder (Std, 115V/28V, 512MB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0005-03
- Quick Access Recorder (Dual ARINC 429/717, 512MB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0007
- Quick Access Recorder (Boeing MD, 512MB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0009
- Quick Access Recorder (MIL STD 1553, 28V, 512MB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0011
- Quick Access Recorder (Teledyne, Bipolar, 512MB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0101
- Quick Access Recorder (Boeing, 115V, 1GB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0105
- Quick Access Recorder (Std, 115V/28V, 1GB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0105-03
- Quick Access Recorder (Dual ARINC 429/717, 1GB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0107
- Quick Access Recorder (Boeing, 115V, 1GB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0109
- Quick Access Recorder (MIL STD 1553, 28V, 1GB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
804-0111
- Quick Access Recorder (Teledyne, Bipolar, 1GB)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
