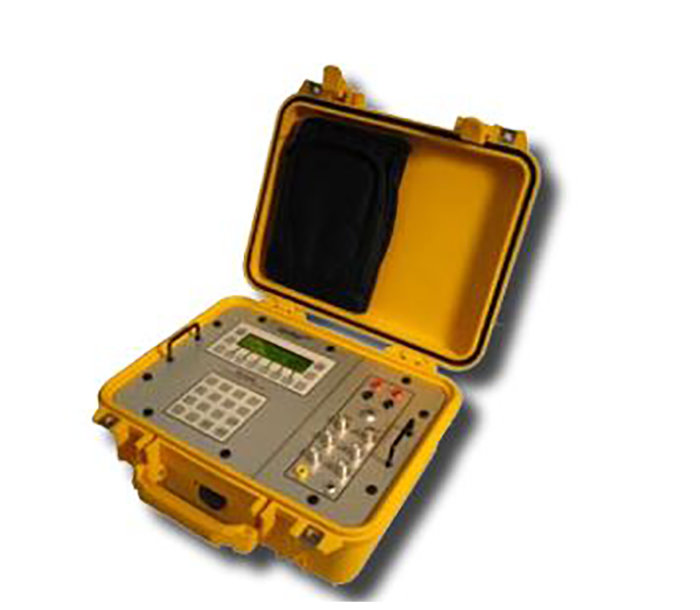

Picture of product DFQ40K
Part #: 101-01501
Model: DFQ40K
Desc: Digital AC Fuel Quantity Test Set
OEM: Barfield
Sched-B: 9026107000
ECCN: 7B994
Part Number :

Barfield

DFQ40K

FEATURES
  • The DFQ40K is designed for and is compatible with all aircraft, which have AC capacitance, based Fuel Quantity Indicating Systems including those equipped with transient suppressors
  • The DFQ40K has the ability to measure the insulation breakdown of tank units, wiring and connectors associated with the system
  • Capacitance of the tank units which measure the level of fuel in the tanks and simulation of capacitances required to test and calibrate the aircraft indicating system
  • Microprocessor based
  • Completely self contained AC capacitance fuel quantity test system
  • Measures capacitance, insulation, DC voltage, resistance and distance to fault
  • Capacitance simulation and indicator testing
  • Custom multi-line backlit graphic display
  • Direct keypad entry of Tank and Comp simulation values
  • Uses all existing fuel quantity cables
  • Uses new generation of Smart Cables to perform Automated Test Routines
  • Calibration date available from display with user alerts to approaching calibration date
  • Powered from common “C” batteries with auto-off feature to conserve batteries
  • Numerous user prompts



SPECIFICATIONS
HEIGHT: 14 Inches (35.6 cm)
Weight: 10.0 lbs. (4.54 kg)
depth: 6.0 Inches (15.2 cm)
width: 12.0 Inches (30.5 cm)















101-01501
- Digital AC Fuel Quantity Test Set
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
