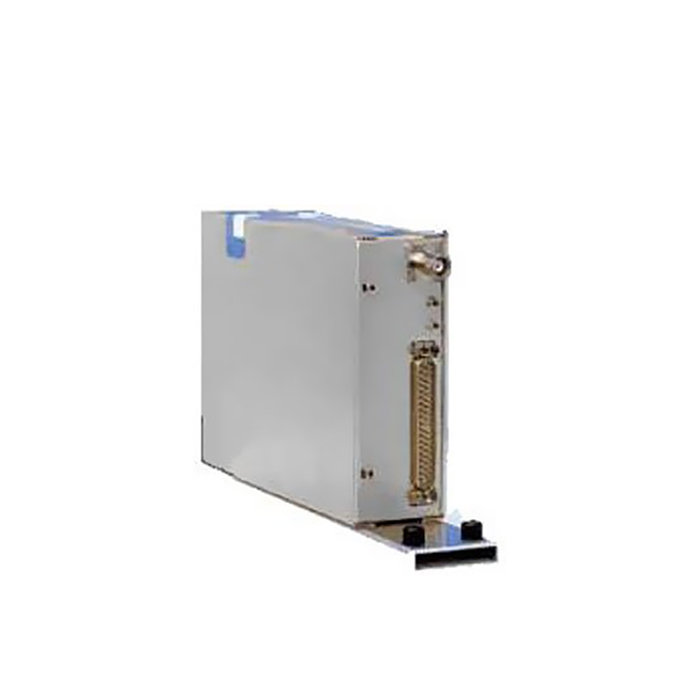

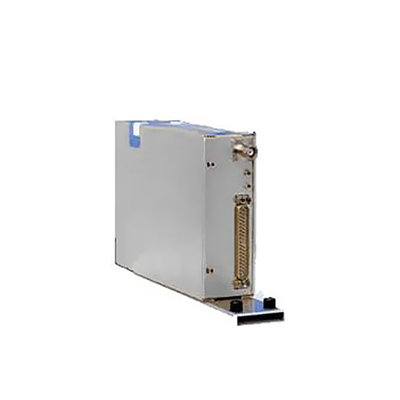

Picture of product RA3502-(01)

Part #: 0505.757-912

Model: RA3502-(01)

OEM:

Becker Avionics

Desc:

ADF Remote w/ Mounting Plate

Part Number :
Becker Logo


RA-3502-01

FEATURES

  • Remote-Mount ADF Receiver
  • 190 kHz - 1799.5 kHz @ 500 Hz Spacing



SPECIFICATIONS
Supply Voltage: +27.5 VDC Current Consumption: ≤ 0.65 A
Operating Temperature: -40° C to +70° C Storage Temperature: -55° C to +85° C
Altitude: 50,000 ft Control Interfrace: RS 422, serial line
Dimensions: 139 H x 50 W x 253 D mm Weight: 1 kg
Frequency Range: 190 kHz - 1799.5 kHz Channel Spacing: 500 Hz
Sensitivity: ≤ 70 µV/m for 6 dB Bearing Accuracy: ≤ 3° at 70 µV/m f = 190 - 850 kHz ≤ 8° at 70 µV/m f = > 850 kHz
Audio Output: ≥ 5.5 V across 300 Ω sym
Part Number: Description:
0505.757-912 ADF Remote w/ Mounting Plate



0505.757-912
- ADF Remote w/ Mounting Plate
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
