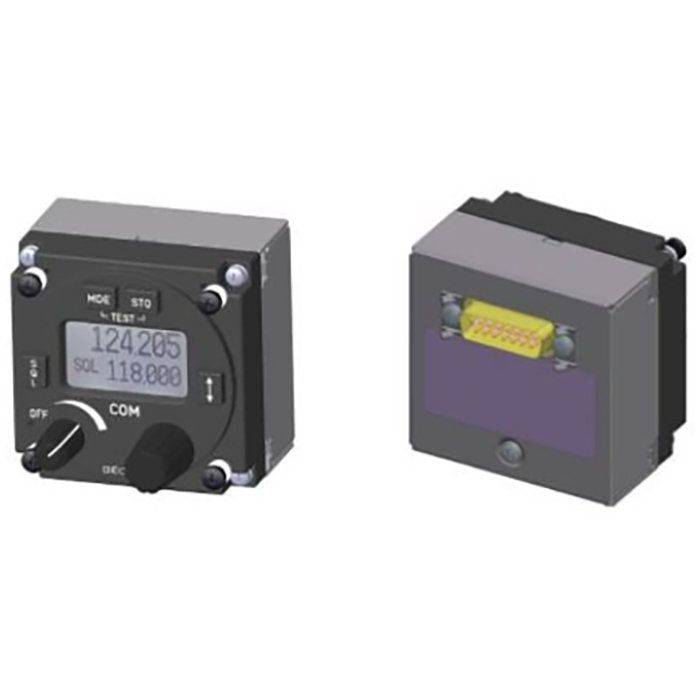

Picture of product RCU6512-100
Part #: 0637.297-910
Model: RCU6512-100
Desc: Remote Control Unit (8.33 & 25kHz)
OEM: Becker Avionics
Sched-B: 8537109050
ECCN: 7A994
Part Number :

Becker-avionics







FEATURES

  • RT6512 VHF transceiver covers multiple operational applications
  • Provides RS422 and ARINC 429 connectivity and the robust housing
  • Free of any ventilation slots and forced cooling
  • Low weight and reduced size
  • EASA, FCC certificated



SPECIFICATIONS
Nominal supply voltage: 14 28 VDC Extended supply voltage: 9.0 32.2 VDC
Emergency operation voltage (with RT6512): 18 20.5 VDC Maximum Power Consumption: ≤ 90 mA
Turn OFF Power Consumption: ≤ 1 mA Frequency Range: 118.000 155.975 MHz (depends on RT6512 variant)
Channel Spacing: 25 kHz / 8.33 kHz (up to 136.9916 MHz) Device protection (internal fuse): 1 A
Dimming control: 0 5 V, 0 14 V, or 0 28 V Storage temperature range: -55 +85 °C
Operating temperature range: -20 +55 °C, short-time +70 °C Operating altitude: 35,000 ft
Part Number: Description:
0637.297-910 Remote Control Unit (8.33 & 25kHz)



0637.297-910
- Remote Control Unit (8.33 & 25kHz)
Price Condition Status
$5,135.00 NEW OUTRIGHT DUE IN
