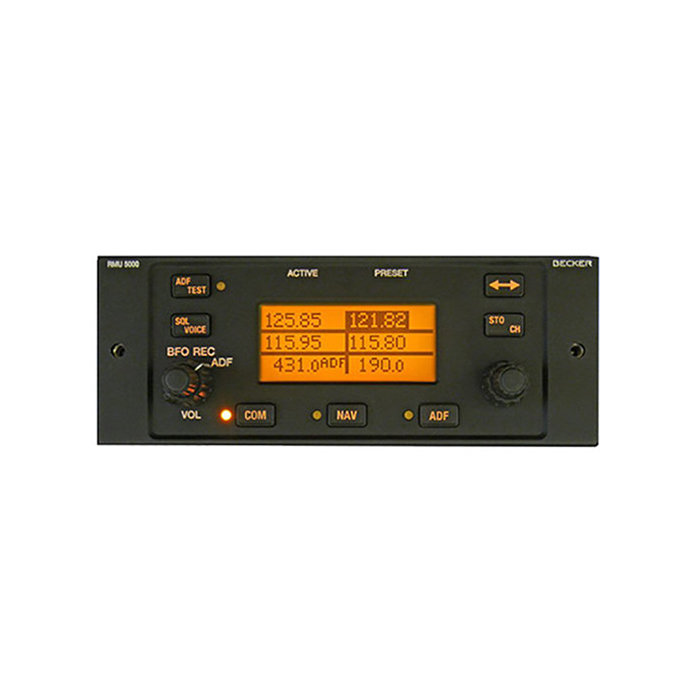

Picture of product RMU5000-2-2110

Part #: 0534.587-908

Model: RMU5000-2-2110

OEM:

Becker Avionics

Desc:

Radio Tuning Unit ST

Part Number :





RMU5000-2-2110

FEATURES

  • COM, NAV, ADF, 160mm Mounting, 5/14/28 VDC Lighting, RS422
  • Centralized Radio Management Unit
  • Tandem operation
  • Supports the Becker RT6512 VHF COM, RN3320 NAV and RA3502 ADF systems
  • Master/Slave Function
  • Display and Panel Dimming
  • TSO & ETSO approved for VFR and IFR operations



SPECIFICATIONS

power sUPPLY: 9...30.3V cURRENT CONSUMPTION W/PANEL ILLUMINATION: 500 mA at27.5 V
oPERATING TEMPERATURE: -20...+55°C SHORT TIME TEMPERATURE: +70°C
STORAGE TEMPERATURE: -55...+85°C ALTITUDE MAX: 50 000 ft.
memeory capacity xpdr: 1 Code mtbf: 5000 hours
speed: COM 9.6 kbps, NAV 9.6 kbps, ADF 9.6 kbps, XPDR 4.8 kbps, RMU 19.2 kbps data transfer: TTL level (positive logic), 0: groun(less than 22 Ω or 0...3.5 VDC), 1: +5 VDC (sinking up to 25 mA), Z: more than 100 k to ground
self test: Built in Test (PBIT, CBIT, IBIT) DISPLAY TECHNOLOGY: LCD (positive) with backlight monochrome
effective display resolution: 86x31 pixels view angle: 45°with 12 o'clock preferred viewing angle
backlight color: Amber LED COLOR: Amber
weight: DZUS version: <0.75 kg, 160 mm version: <0.09 kg (including mounting frame) dimensions :  DZUS version:56.8H x 145.8 W x 172.2mm D(2.24 x 5.74 x 6.77 inch), 160 mm version:59.8 H x 160 W x 172.2mm D(2.35 x 6.3 x 6.77 inch)
panel color: RAL 9005 (black)

Part Number: Description:
0534.587-908 Radio Tuning Unit ST



0534.587-908
- Radio Tuning Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
