Part #: 89000041-002

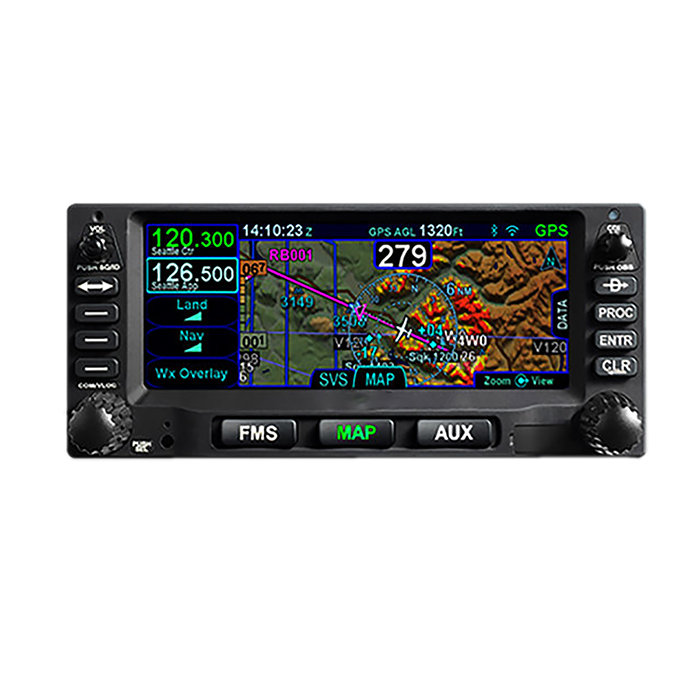

Model: AeroNav 800



Part Number :

AeroNav 800
  • AeroNav reduces data entry by as much as 75%, reducing head-down time, and ultimately increasing efficiency and safety
  • Automatically create user-defined waypoints to further ease flight planning tasks.
  • Designed as a slide in replacement for the GNS 430 and GNS 530 legacy navigators to minimize installation time
  • 4.8” diagonal with touch screen
  • 640 x 235 pixels
  • A highly advanced touch screen enabling you to navigate with fewest number of keystrokes
  • Dedicated knobs and buttons so you can access the screen in case of turbulence
  • 65,535 colors
  • Ultrabright sunlight readable with LED backlighting
  • Built in Bluetooth and Wi-Fi
width: 6.30" (16.0cm)
height: 2.66“ (6.73cm)
depth: 11.0“(27.5cm) behind panel including connectors
weight: (including tray & connectors), AeroNav 800 - 6.88 lb (2.34 kg)
Power Requirements: 11 - 33VDC, 4.4A/6.5A Xmit @14vdc, 2.2A/4.0A Xmit @28vdc
vhf com power output: 10 Watts nominal, Optional 16Watt, (for 28vdc installations only)
environmental: DO 160E, To 50,000 ft.
operating temperature: -20C to +55C +70C Short Term




Part Number: Description:
89000041-002 Aero Navigation


- WAAS GPS Navigator
Price Condition Status
