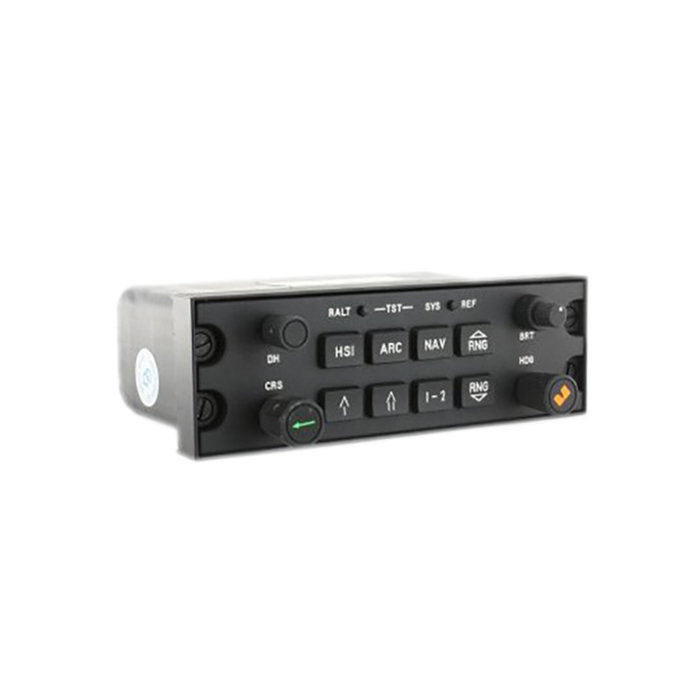

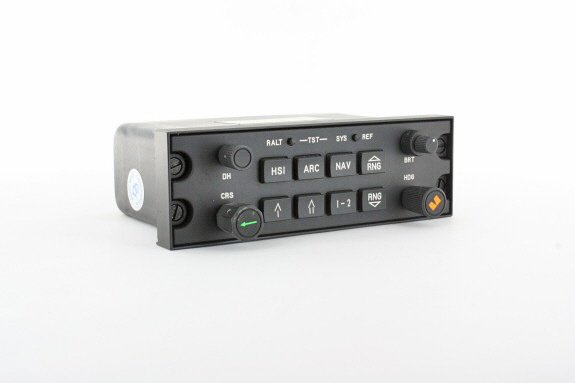

CP-467 071-01439-3100

BendixKing - EFIS Control
Part Number :


CP-467
FEATURES
  • EFIS control panel with DH set and test
  • A control panel option for the EFS-40/50 systems
  • Used when the system is configured as an ADI/HSI and controls system operating mode and testing the EFS-40 and the radio altimeter
  • Controls the presentation displayed on the ED-551A Display Unit when it is utilized as an EHSI or EADI
  • Allows the pilot to select the desired display format, such as standard compass rose or sectored compass rose, 360° map or sectored map and weather radar overlay
  • Has course and heading select knobs with auto sync
  • The auto sync feature will slew the heading bug to the lubber line or the course pointer to the DIRECT TO course for the selected NAV sensor providing a centered D-Bar
SPECIFICATIONS
TSO Compliance:  TSO C113, SAE AS-8034, RTCA DO-160B Size: 1.87"H x 5.74"W x 3.312"L (nominal)
Weight: 0.97 lbs nominal Temperature Range: -40°C to +55°C
Altitude:   55,000 ft. max. Power Requirements: All units require: +7 ± 0.2Vdc @ 0.040 amps max supplied by the symbol generator Units -3100 & above also require: +27.5 ± 0.5Vdc @0.070 amps max
Part NumberControl Panel Description:
071-01439-0100 Black, 5 Vdc Lighting
071-01439-0200  Black, 28 Vdc Lighting
071-01439-0300  Gray, 5 Vdc Lighting
071-01439-0400  Gray, 28 Vdc Lighting
071-01439-0500  Black, 5 Vac Lighting
071-01439-0600  Gray, 5 Vac Lighting
071-01439-3100  Black, 5Vac/5Vdc/28Vdc Lighting, HIRF/Lighting
071-01439-3200  Gray, 5Vac/5Vdc/28Vdc Lighting, HIRF/Lighting
071-01439-3300  Black, 5Vac/5Vdc/28Vdc Lighting/Red Lighting, HIRF/Lighting



071-01439-0100
- EFIS Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-01439-0200
- EFIS Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-01439-0300
- EFIS Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-01439-0400
- EFIS Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-01439-0500
- EFIS Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-01439-0600
- EFIS Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-01439-3100
- EFIS Control

NSN: 1680-01-415-5770

Price Condition Delivery
$14,750.00 NEW OUTRIGHT CALL OR RFQ
$1,950.00 SV OUTRIGHT IN STOCK

SEA Repair Capabilities: No

071-01439-3200
- EFIS Control Panel
Price Condition Delivery
$13,950.00 NEW OUTRIGHT CALL OR RFQ
CALL OR RFQ SV OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

071-01439-3300
- EFIS Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-1439-01
- EFIS Control Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
