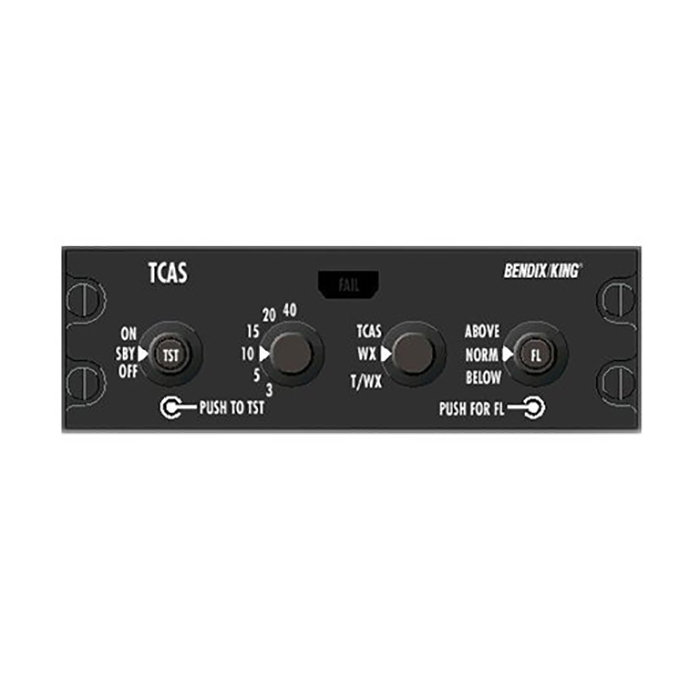

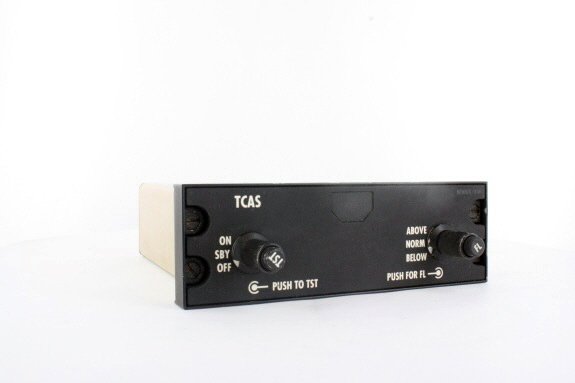

Part #: 071-01568-0801

Model: CP-66B

OEM:

BendixKing

Desc:

TCAS I Control

Part Number :


CP-66B
FEATURES
  • Digital control that provides control of CAS-66A TCAS I System
  • Interfaces various external discrete inputs and supplies ARINC 429 and control signals necessary for operation of TCAS I system
  • DZUS mounted
  • Range control (RNG) to select range on traffic display (in nautical miles) - certain versions, see table below
  • Flight Level (FL) control repalces intruder's relative altitude with absolute altitude in flight level format for 15 seconds
  • ABOVE/NORMAL/BELOW control selects altitude display limits
  • Test (TST) switch initiates comprehensive system self test lasting approximately 12 seconds
  • Standy (SBY) control places TCAS in standby
  • Power (PWR) control turns system ON or OFF
  • Traffic/Weather (T/WX) switch is used installations with radar indicators acting as traffic display to switch between Weather Only (WX), Weather with Traffic Overlaid (T/Wx) and Traffic Only (TCAS) modes - certain versions, see table below
  • AUTO/MANUAL switch is used in EFIS installations to control TCAS display on an MFD - certain versions, see table below
  • AUTO mode automatically displays available traffic on MFD
  • MANUAL mode displays available traffic only when TCAS is selected on EFIS controller
  • Lamps can be powered by either 5V or 28VDC
  • Black or gray bezel (see table below)
  • Dimming annunciator (see table below)



SPECIFICATIONS
Size: 5.74"W x 1.87"H x 5.36"L Weight: 1.3 lbs.
Input Power: 28 VDC; 3560mA, 10 watts Lighting: 5Vdc, 5Vac 400Hz or 28Vdc
Temperature: -35 to 55C Data Output: Low-speed ARINC 429
Cooling: no forced cooling required TSO: C118
Part Number: Description:
071-01568-0101 Black, With Range Selector, With T/WX Selector, Without AUTO/MANUAL, Without Dimming Annunciator
071-01568-0201 Black, With Range Selector, Without T/WX Selector, Without AUTO/MANUAL, Without Dimming Annunciator
071-01568-0401 Black, Without Range Selector, Without T/WX Selector, Without AUTO/MANUAL, Without Dimming Annunciator
071-01568-0501 Gray, With Range Selector, With T/WX Selector, Without AUTO/MANUAL, Without Dimming Annunciator
071-01568-0601 Gray, With Range Selector, Without T/WX Selector, Without AUTO/MANUAL, Without Dimming Annunciator
071-01568-0801 Gray, Without Range Selector, Without T/WX Selector, Without AUTO/MANUAL, Without Dimming Annunciator
071-01568-0901 Gray, With Range Selector, Without T/WX Selector, With AUTO/MANUAL, Without Dimming Annunciator
071-01568-1001 Black, With Range Selector, Without T/WX Selector, With AUTO/MANUAL, Without Dimming Annunciator
071-01568-1101 Gray, With Range Selector, Without T/WX Selector, With AUTO/MANUAL, With Dimming Annunciator
071-01568-1201 Black, With Range Selector, Without T/WX Selector, Without AUTO/MANUAL, With Dimming Annunciator
071-01568-1401 Black, Without Range Selector, Without T/WX Selector, Without AUTO/MANUAL, With Dimming Annunciator
071-01568-1501 Gray, With Range Selector, With T/WX Selector, Without AUTO/MANUAL, With Dimming Annunciator
071-01568-1601 Gray, With Range Selector, Without T/WX Selector, Without AUTO/MANUAL, With Dimming Annunciator
071-01568-1801 Gray, Without Range Selector, Without T/WX Selector, Without AUTO/MANUAL, With Dimming Annunciator
071-01568-2001 Black, With Range Selector, Without T/WX Selector, With AUTO/MANUAL, With Dimming Annunciator
071-01568-2101 Black, With Range Selector, With T/WX Selector, Without AUTO/MANUAL, With Dimming Annunciator



Serial # 1514
Condition AR
Mods -
Tag Date -
Shop -
Warranty -
071-01568-0801
- TCAS I Control
Price Condition Status
REQUEST AR OUTRIGHT 1 IN STOCK
071-01568-0101
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-0201
- TCAS I Control
Price Condition Status
$16,200.00 NEW OUTRIGHT REQUEST LEAD TIME
071-01568-0401
- TCAS I Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
071-01568-0501
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-0601
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-0901
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-1101
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-1201
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-1401
- TCAS I Control

NSN: 6605-01-606-8790

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
$4,950.00 SV OUTRIGHT REQUEST LEAD TIME
$2,250.00 SV EXCHANGE REQUEST LEAD TIME
071-01568-1501
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-1601
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-1801
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01568-2101
- TCAS I Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
