Model: IN-862A

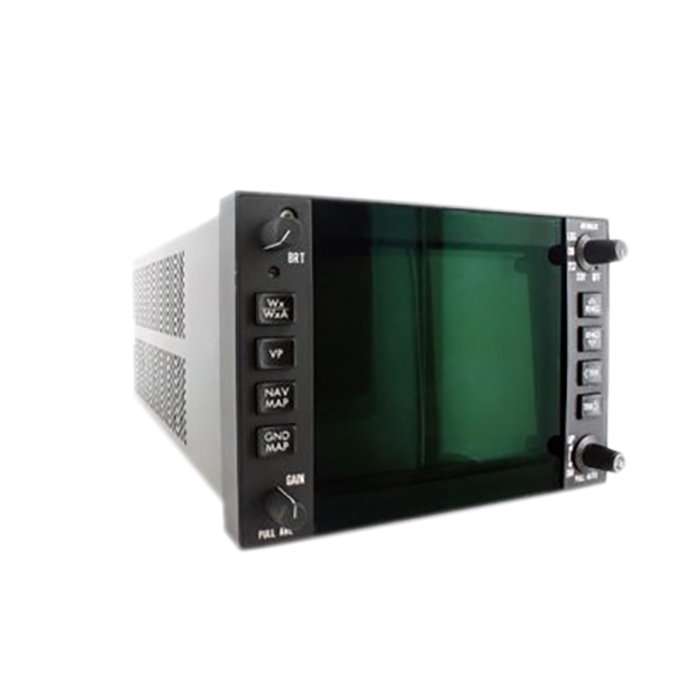

BendixKing - Color Radar Indicator
Part Number :


IN-862A
FEATURES
  • Four color radar indicator used with RDR-2100 and RDS-86 radar systems
  • -00 & -01 (or Bendix equivalent) versions are used with RS-861A P/N 071-1319-00 or 3614475-8601 versions
  • -10,-11,-30,-31 versions are used with RS-861A 071-1319-30 version
  • -30 & -31 versions are used with ART-2100 radar sensor
  • King P/N 066-3086-00 and -01 superceded Bendix P/N 3614475-8601 and -8602 when Bendix/King merger took place
  • Solid-state
  • Display Range/Range Marks of 5,10,20,40,80,160,240, and 320 nautical miles
  • EFIS compatible (version specific- see table below)
  • ARINC 453 bus, ARINC 708 data word weather data inputs
  • ARINC 429 control data outputs
  • Auto-calibration feature allows to install or replace unit wihout use of test equipment
  • 5,14, or 28 Volt panel lighting
  • Compatible with graphics units to provide on-screen waypoint information and checklist data
  • Models available with black or gray bezel (see table below)
  • Models available with graphics compatibility for display of navigation information (see table below)
SPECIFICATIONS
Modes: STBY,WX,WXA,NAV MAP, GND MAP, VP and TEST Range Scales: 5,10,20,40,80,160,240,320 NM; up to 1000 nm for navigation only
Altitude: 35000 ft. unpressurized Temperature: -20 to 55C
Dimensions: 6.4"W x 4.5"H x 13.57"L Weight: 9.75 lbs.
TSO: C63c Env. Categories: DO-160A; C1A/PKS/XXXXXXABABA
066-3086-00 black bezel, non-vertical profile
3614477-8601 black bezel, non-vertical profile; Bendix alternate #
066-3086-01 gray bezel, non-vertical profile
3614477-8602 gray bezel, non-vertical profile; Bendix alternate #
066-3086-10 black bezel, vertical profile
066-3086-11 gray bezel, vertical profile
066-3086-30 black bezel, vertical profile, EFIS compatible
066-3086-31 gray bezel, vertical profile, EFIS compatible


PLEASE NOTE:
THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



066-3086-00
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

066-3086-01
- Radar Indicator (RDS-86)
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ
CALL OR RFQ OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

066-3086-10
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

066-3086-11
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

066-3086-30
- Color Radar Indicator
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ
CALL OR RFQ OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

066-3086-31
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes
